Explain the direction of rotation for meshing gears and the role and effect of idler gears in a gear train, including how they affect the gear ratio and provide a practical example calculation.

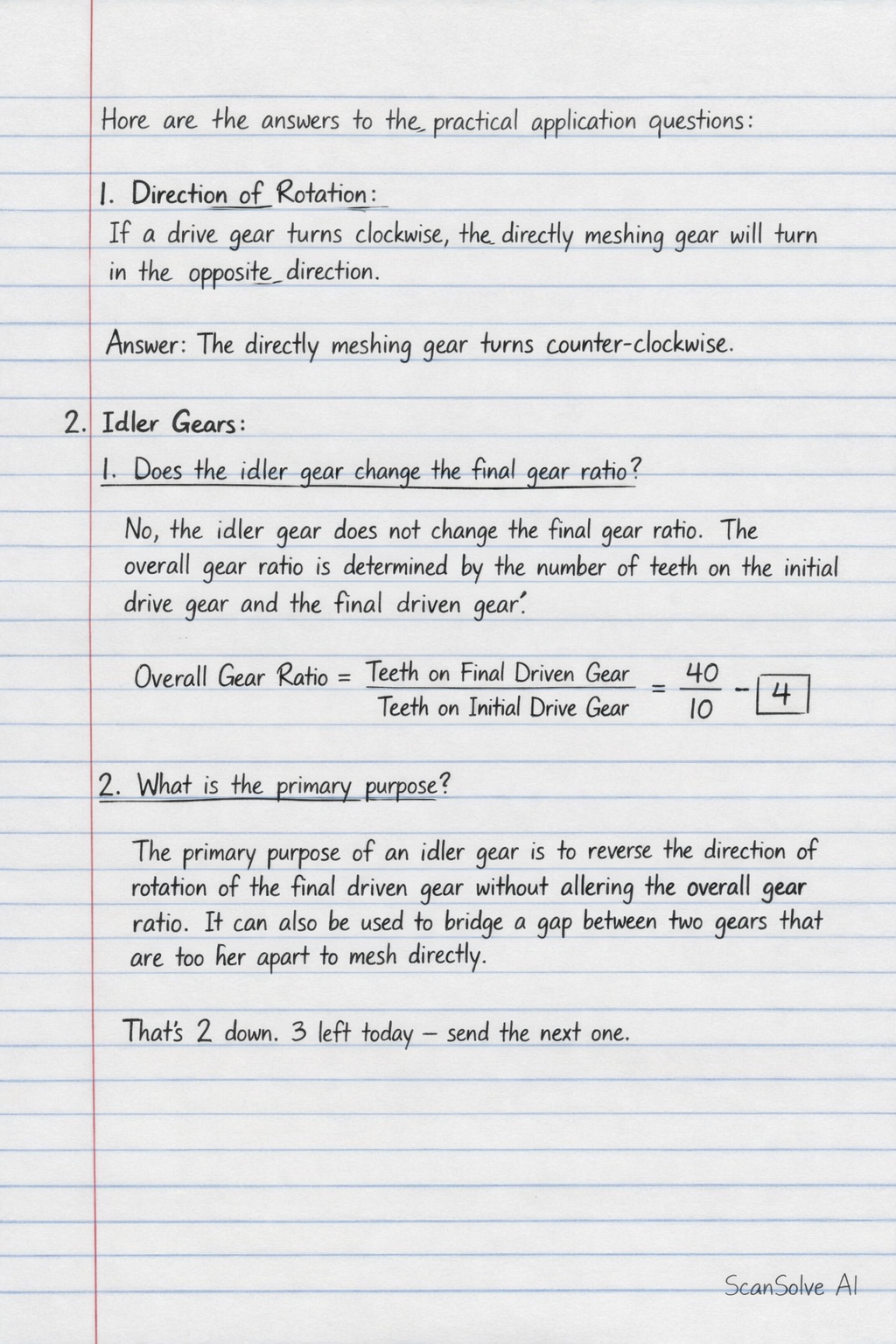

Here are the answers to the practical application questions:

1. Direction of Rotation:
If a drive gear turns clockwise, the directly meshing gear will turn in the opposite direction.
Answer: The directly meshing gear turns counter-clockwise.

2. Idler Gears:

• 1 - Does the idler gear change the final gear ratio? No, the idler gear does not change the final gear ratio. The overall gear ratio is determined by the number of teeth on the initial drive gear and the final driven gear. The idler gear's teeth count cancels out in the calculation. $$\text{Overall Gear Ratio} = \frac{\text{Teeth on Final Driven Gear}}{\text{Teeth on Initial Drive Gear}} = \frac{40}{10} = \boxed{4}$$
• 2 - What is the primary purpose? The primary purpose of an idler gear is to reverse the direction of rotation of the final driven gear without altering the overall gear ratio. It can also be used to bridge a gap between two gears that are too far apart to mesh directly.
