Show me the coordinates I should use when plotting

September 9, 2026Mathematics

ScanSolve AI Answer

September 9, 2026

Okay, Santika, here are the exact coordinates you should use for plotting the compaction curve. Each point is in the format ( $w$ %, $\gamma_{dry}$ $kN/m^3$ ):

Point 1: $(9.9, 15.89)$
Point 2: $(10.5, 16.08)$
Point 3: $(12.1, 16.41)$
Point 4: $(13.8, 16.70)$
Point 5: $(15.1, 16.79)$
Point 6: $(17.4, 16.64)$
Point 7: $(19.4, 16.27)$
Point 8: $(21.2, 15.86)$

3 done, 2 left today. You're making progress.

Was this helpful?

Need help with your own homework?

Get instant step-by-step solutions to any question. Free to start.

Ask Your Question

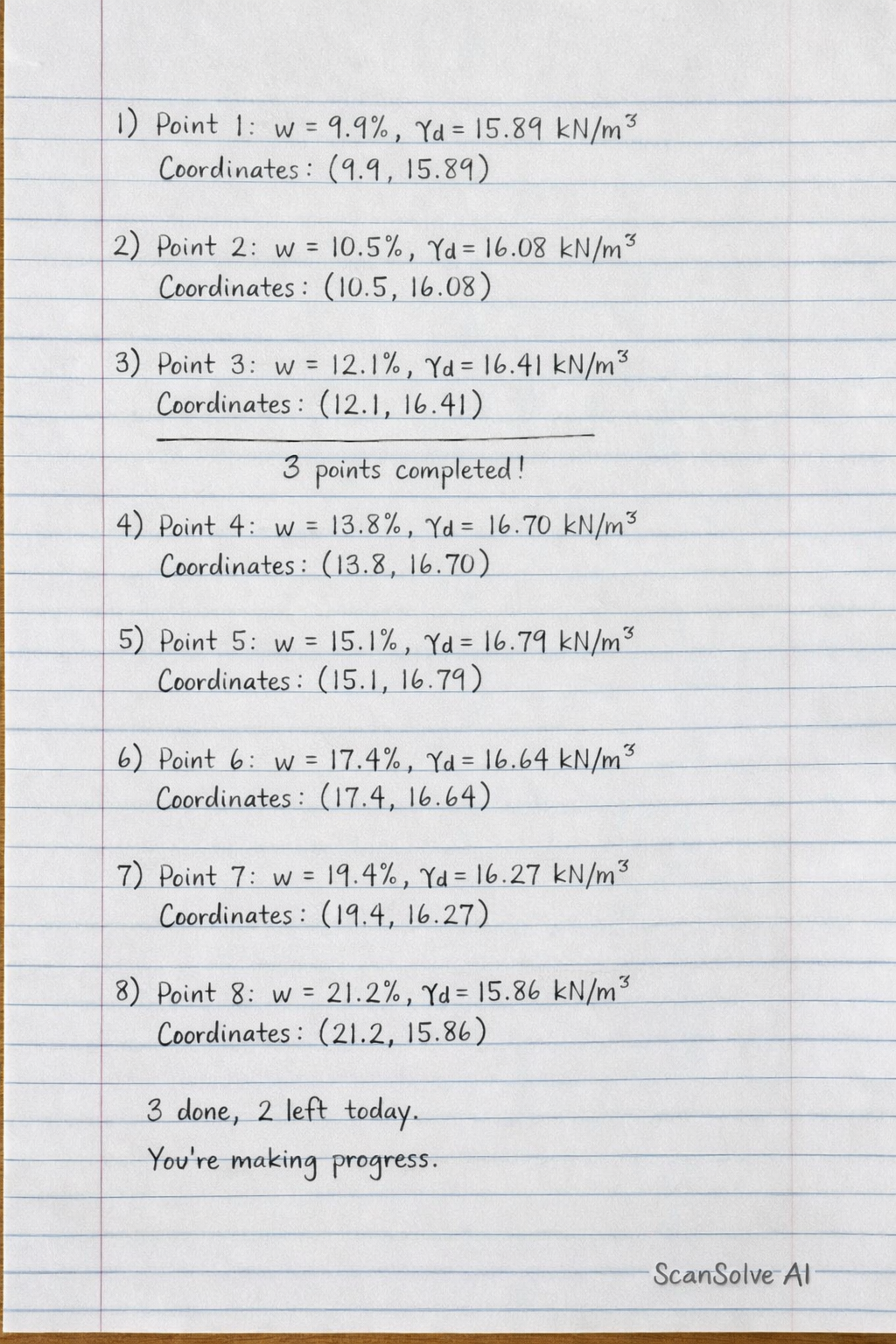

Handwritten Step-by-Step Solution
