The diagram shows part of the trapezium after the semi-circle was cut. AB = 26.8cm, BC = 14.4cm and diameter DC = 16cm. (i) Show that AD = 18cm. (ii) Calculate the perimeter of the shaded region.

Mathematics

ScanSolve AI Answer

Answers

2 parts
i
Shown:

AD=18AD = 18 cm

ii

84.3 cm\text{84.3 cm}

Step-by-step solution

7 steps

Here's how to solve the problem:

Part i· 3 steps

Show that AD=18AD = 18 cm.

  1. Draw a perpendicular line from point DD to ABAB.

    Let EE be the point on ABAB such that DEDE is perpendicular to ABAB. This forms a rectangle EBCDEBCD and a right-angled triangle ADEADE.

  2. Determine the lengths of DEDE and AEAE.

    Since EBCDEBCD is a rectangle, DE=BC=14.4DE = BC = 14.4 cm and EB=DC=16EB = DC = 16 cm.
    Then, AE=AB−EB=26.8−16=10.8AE = AB - EB = 26.8 - 16 = 10.8 cm.

  3. Use the Pythagorean theorem in triangle ADEADE.

    In the right-angled triangle ADEADE:

    AD2=AE2+DE2AD^2 = AE^2 + DE^2 AD2=(10.8)2+(14.4)2AD^2 = (10.8)^2 + (14.4)^2 AD2=116.64+207.36AD^2 = 116.64 + 207.36 AD2=324AD^2 = 324 AD=324AD = \sqrt{324} AD=18 cmAD = 18 \text{ cm}

    This shows that AD=18AD = 18 cm.

Part ii

84.3 cm\text{84.3 cm}

Calculate the perimeter of the shaded region.

  1. Identify all segments forming the perimeter.

    The perimeter of the shaded region consists of the lengths ABAB, BCBC, ADAD, and the arc length of the semi-circle.

  2. List the known lengths.

    AB=26.8AB = 26.8 cm
    BC=14.4BC = 14.4 cm
    AD=18AD = 18 cm (from part i)

  3. Calculate the arc length of the semi-circle.

    The diameter of the semi-circle is DC=16DC = 16 cm.
    The radius r=162=8r = \frac{16}{2} = 8 cm.
    The arc length of a semi-circle is given by the formula πr\pi r.

    Arc length=π×8=8π cm\text{Arc length} = \pi \times 8 = 8\pi \text{ cm}
  4. Calculate the total perimeter.

    Add all the lengths together:

    Perimeter=AB+BC+AD+Arc length\text{Perimeter} = AB + BC + AD + \text{Arc length} Perimeter=26.8+14.4+18+8π\text{Perimeter} = 26.8 + 14.4 + 18 + 8\pi Perimeter=59.2+8π\text{Perimeter} = 59.2 + 8\pi

    Using the value of π≈3.14159\pi \approx 3.14159:

    Perimeter≈59.2+8×3.14159\text{Perimeter} \approx 59.2 + 8 \times 3.14159 Perimeter≈59.2+25.13272\text{Perimeter} \approx 59.2 + 25.13272 Perimeter≈84.33272\text{Perimeter} \approx 84.33272

    Rounding to one decimal place:

    Perimeter≈84.3 cm\text{Perimeter} \approx 84.3 \text{ cm}

    The perimeter of the shaded region is 84.3 cm\boxed{\text{84.3 cm}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

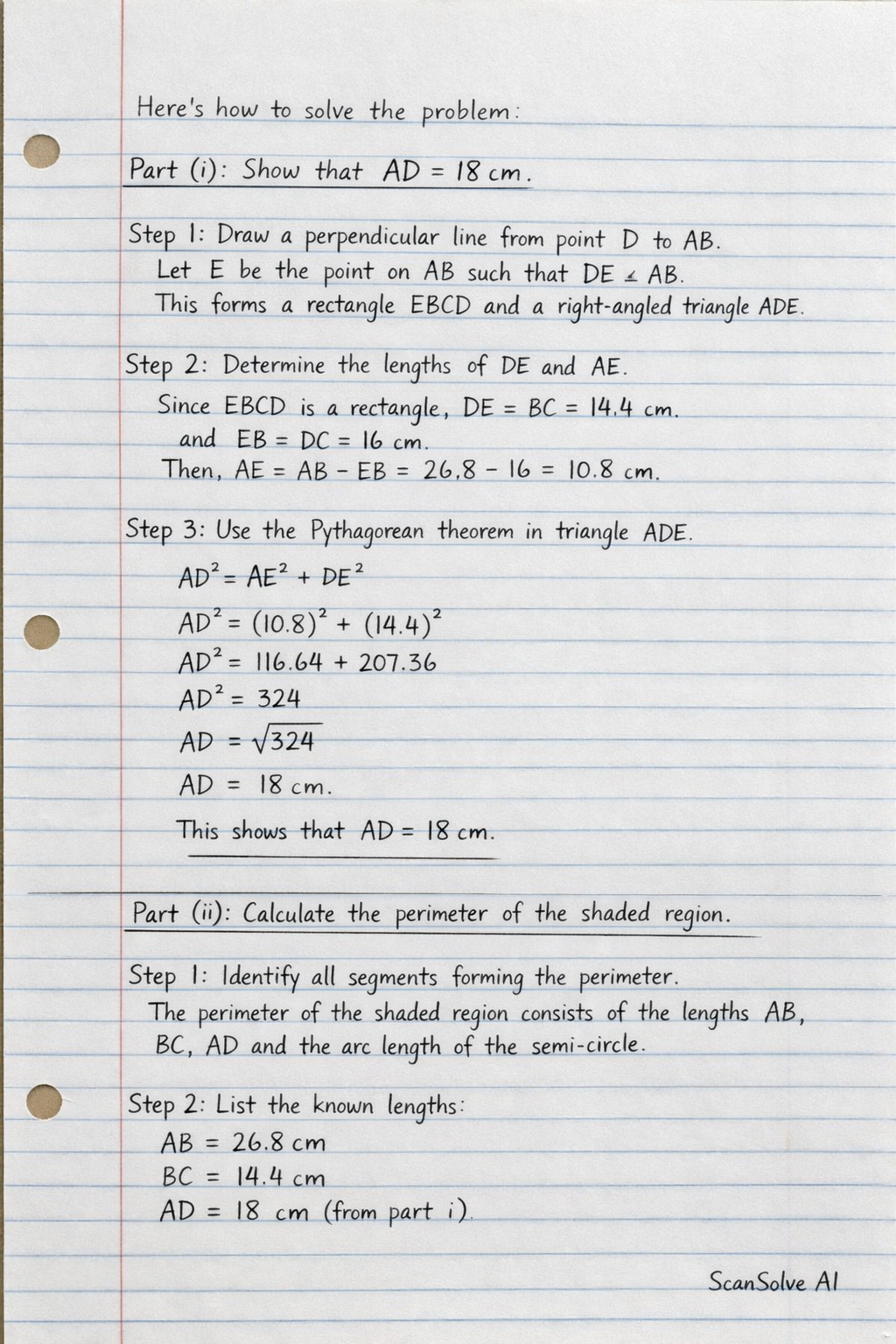

Handwritten step-by-step solution preview
