A 5 kg block rests on a horizontal surface. The static frictional coefficient is 0.55 and the kinetic frictional coefficient is 0.45. Calculate the static and kinetic frictional forces.

Physics

ScanSolve AI Answer

Step-by-step solution

4 steps

Here's the solution to question 4:

  1. Identify the given values.

    The mass of the block is m=5 kgm = 5 \text{ kg}.
    The static frictional coefficient is μs=0.55\mu_s = 0.55.
    The kinetic frictional coefficient is μk=0.45\mu_k = 0.45.
    Assume the acceleration due to gravity g=9.8 m/s2g = 9.8 \text{ m/s}^2.

  2. Calculate the normal force (FNF_N).

    For a block on a horizontal surface, the normal force is equal to its weight.
    Weight W=m×gW = m \times g

    W=5 kg×9.8 m/s2W = 5 \text{ kg} \times 9.8 \text{ m/s}^2 W=49 NW = 49 \text{ N}

    Therefore, the normal force is FN=49 NF_N = 49 \text{ N}.

  3. Calculate the static frictional force (FsF_s).

    The formula for static friction is Fs=μsFNF_s = \mu_s F_N.
    Substitute the values:

    Fs=0.55×49 NF_s = 0.55 \times 49 \text{ N} Fs=26.95 NF_s = 26.95 \text{ N}
  4. Calculate the kinetic frictional force (FkF_k).

    The formula for kinetic friction is Fk=μkFNF_k = \mu_k F_N.
    Substitute the values:

    Fk=0.45×49 NF_k = 0.45 \times 49 \text{ N} Fk=22.05 NF_k = 22.05 \text{ N}

    The answers are:

    4.1 Static frictional force: 26.95 N\boxed{\text{26.95 N}}

    4.2 Kinetic frictional force: 22.05 N\boxed{\text{22.05 N}}

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

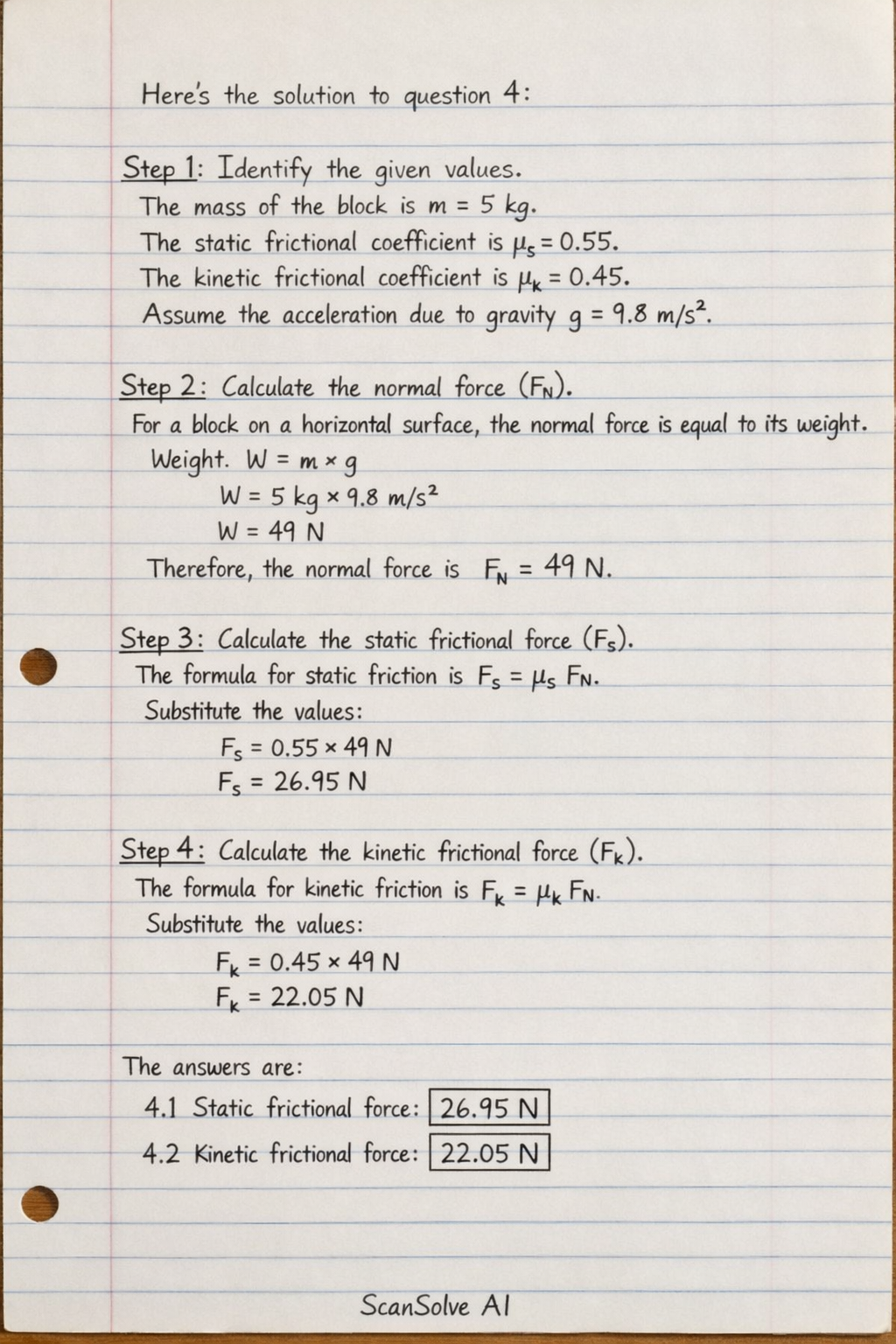

Handwritten step-by-step solution preview
