We read your photo as:

A block requires 26 N of force to get it moving and 15 N of force to keep it moving at constant velocity. If the static frictional coefficient is 0.77, what is the normal force and the kinetic frictio

Physics

ScanSolve AI Answer

Answer

33.77 N\text{33.77 N}

0.44\text{0.44}

Step-by-step solution

3 steps

Here's the solution to question 3:

  1. Identify the given values.

    The force required to get the block moving (static friction) is Fs=26 NF_s = 26 \text{ N}.
    The force required to keep the block moving at a constant velocity (kinetic friction) is Fk=15 NF_k = 15 \text{ N}.
    The static frictional coefficient is μs=0.77\mu_s = 0.77.

  2. Calculate the normal force (FNF_N).

    The formula for static friction is Fs=μsFNF_s = \mu_s F_N.
    Rearrange to solve for FNF_N:

    FN=FsμsF_N = \frac{F_s}{\mu_s}

    Substitute the values:

    FN=26 N0.77F_N = \frac{26 \text{ N}}{0.77} FN≈33.77 NF_N \approx 33.77 \text{ N}
  3. Calculate the kinetic frictional coefficient (μk\mu_k).

    The formula for kinetic friction is Fk=μkFNF_k = \mu_k F_N.
    Rearrange to solve for μk\mu_k:

    μk=FkFN\mu_k = \frac{F_k}{F_N}

    Substitute the values:

    μk=15 N33.77 N\mu_k = \frac{15 \text{ N}}{33.77 \text{ N}} μk≈0.44\mu_k \approx 0.44

    The answers are:

    3.1 Normal force exerted onto the block: 33.77 N\boxed{\text{33.77 N}}

    3.2 Kinetic frictional coefficient: 0.44\boxed{\text{0.44}}

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

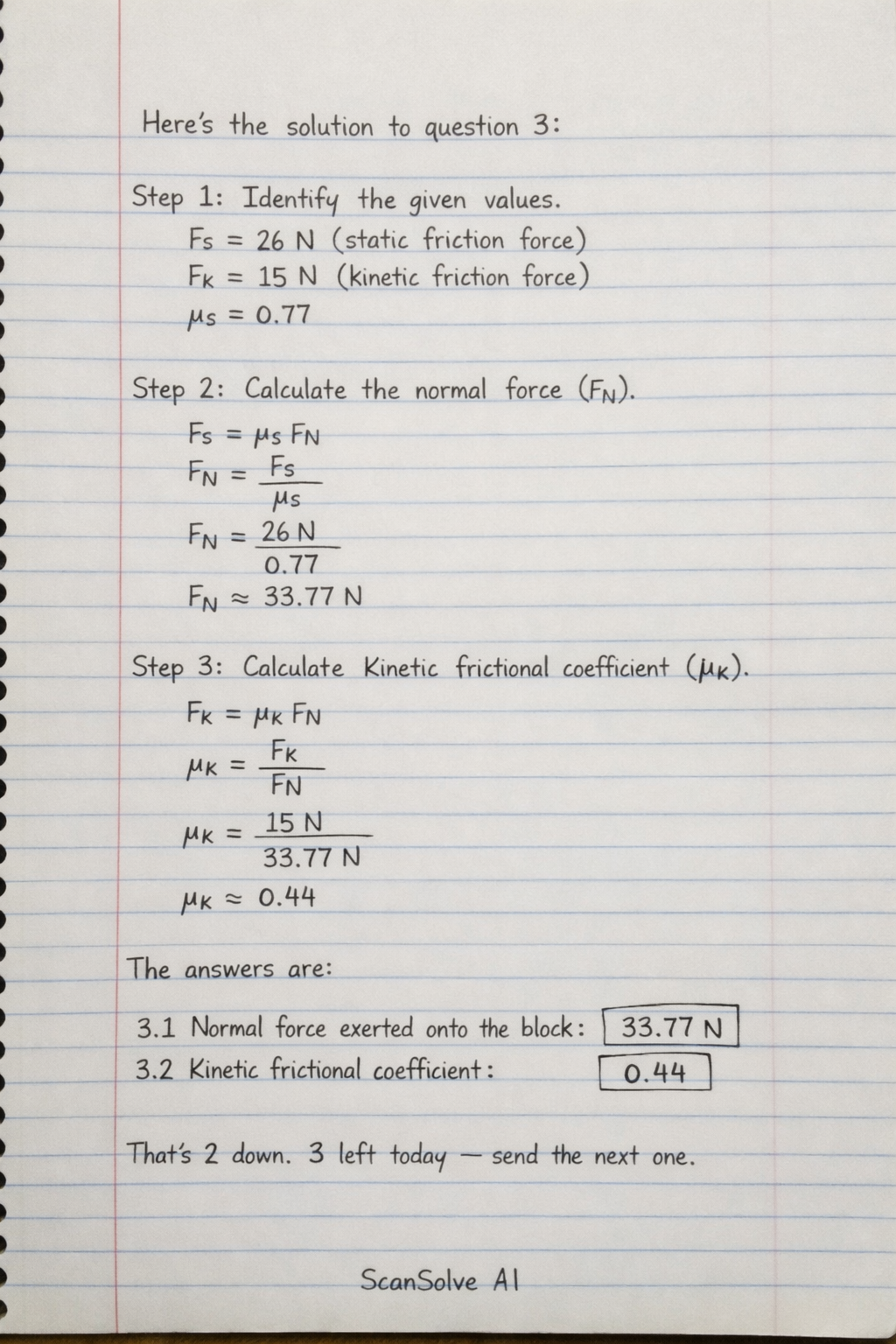

Handwritten step-by-step solution preview
