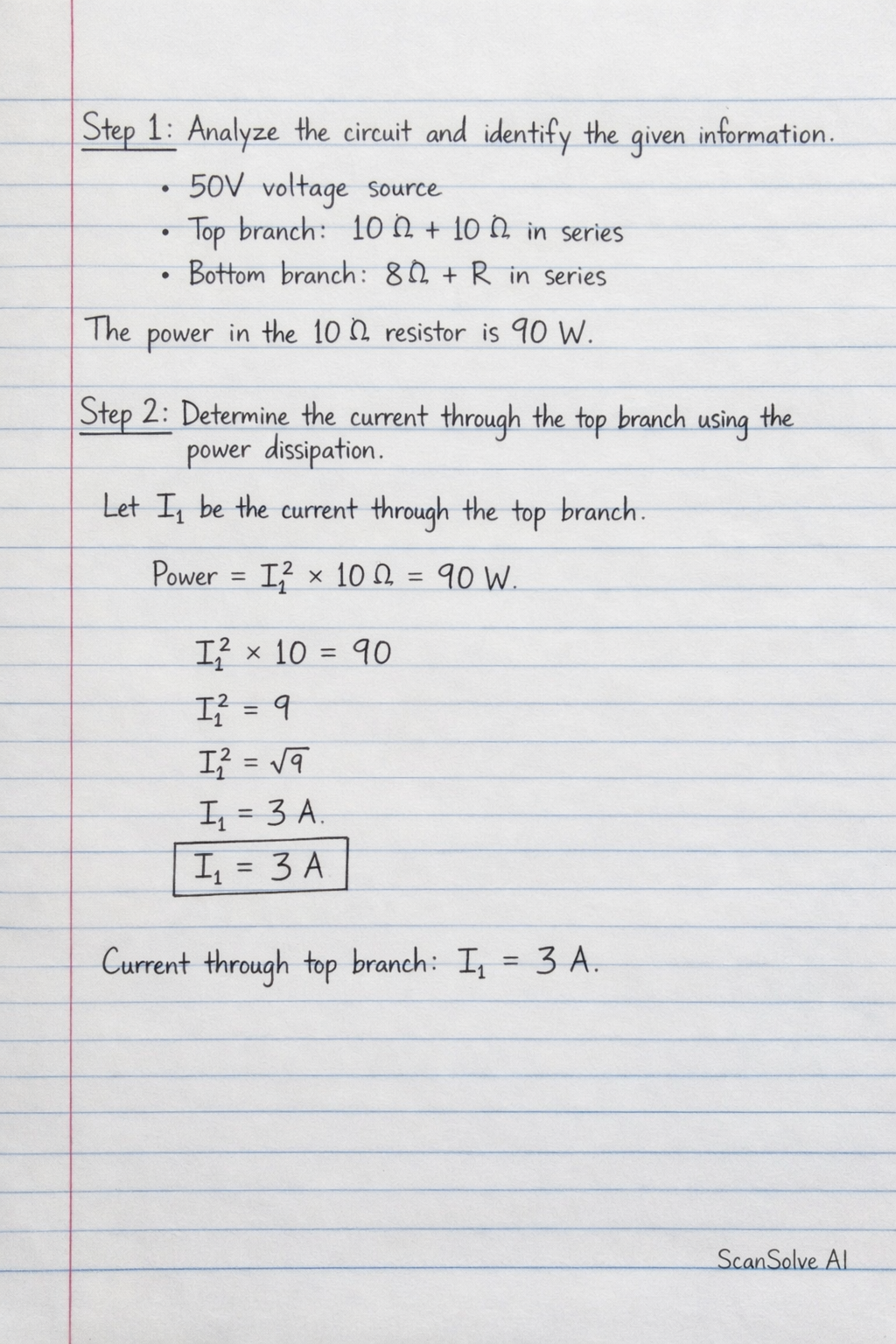

Step 1: Analyze the circuit and identify the given information. The circuit consists of a 50V voltage source connected to two parallel branches. • The top branch contains two 10 \, resistors in series. • The bottom branch contains an 8 \, resistor and an unknown resistor R in series. The problem states that the power dissipated in the 10 \, resistor is 90 \, W. Step 2: Determine the current through the top branch using the power dissipation. Let I_1 be the current flowing through the top branch. Since the two 10 \, resistors are in series, the same current I_1 flows through both of them
