A battery of four 1.5 V cells in series powers a circuit with two 200 ohm resistors in parallel, connected to…

Question

A battery of four 1.5 V cells in series powers a circuit with two 200 ohm resistors in parallel, connected to a 400 ohm resistor in series. What is the voltmeter reading across the 400 ohm resistor?

ScanSolve AI Tutor · Accepted Answer

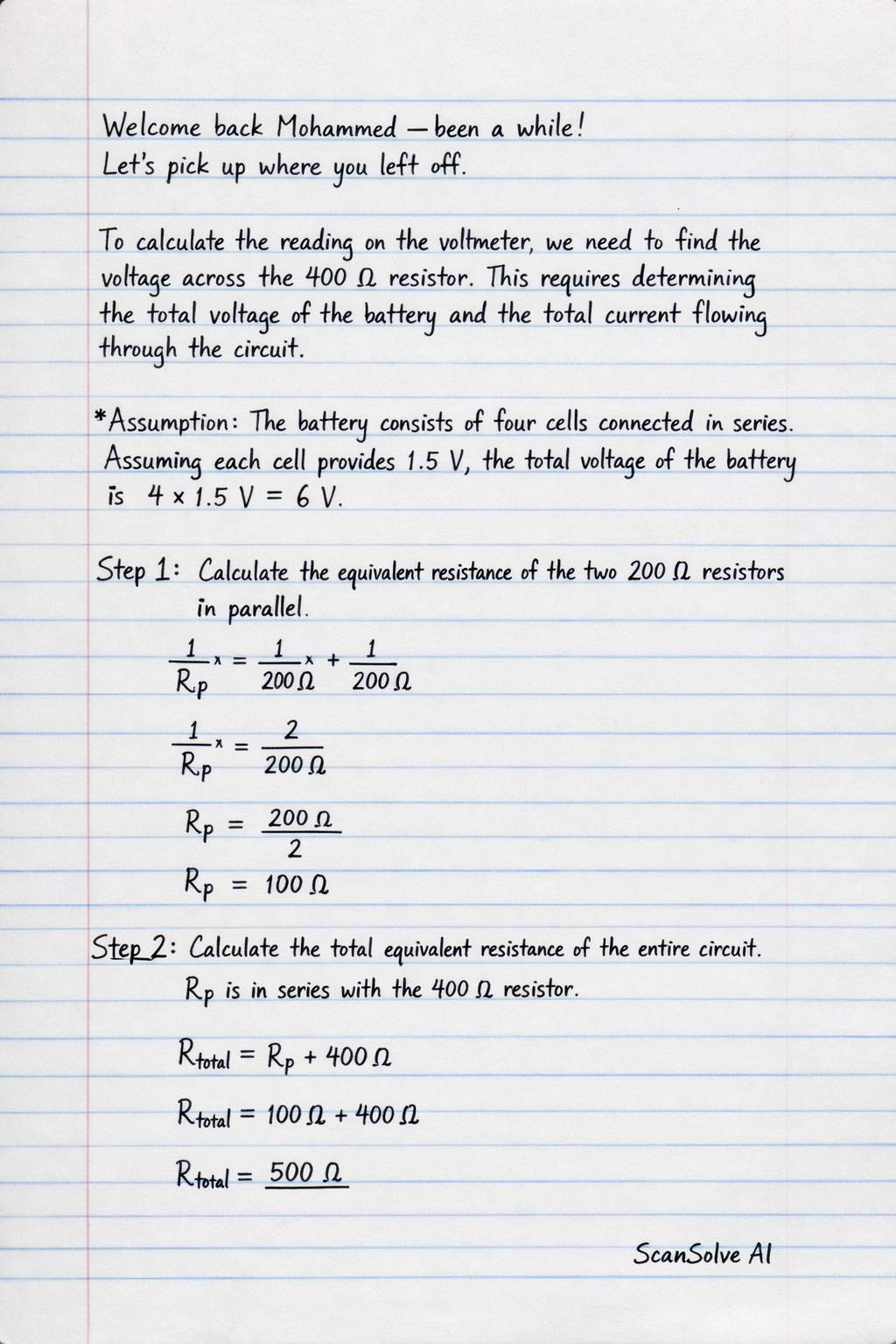

To calculate the reading on the voltmeter, we need to find the voltage across the $400 \, \Omega$ resistor. This requires determining the total voltage of the battery and the total current flowing through the circuit.

Assumption: The battery consists of four cells connected in series. Assuming each cell provides $1.5 \, \text{V}$ , the total voltage of the battery is $4 \times 1.5 \, \text{V} = 6 \, \text{V}$ .

Calculate the equivalent resistance of the two $200 \, \Omega$ resistors connected in parallel.
$\frac{1}{R_{p}} = \frac{1}{200 \, \Omega} + \frac{1}{200 \, \Omega}$ $\frac{1}{R_{p}} = \frac{2}{200 \, \Omega}$ $R_{p} = \frac{200 \, \Omega}{2} = 100 \, \Omega$
Calculate the total equivalent resistance of the entire circuit.
The parallel combination ( $R_p$ ) is in series with the $400 \, \Omega$ resistor.
$R_{total} = R_p + 400 \, \Omega$ $R_{total} = 100 \, \Omega + 400 \, \Omega = 500 \, \Omega$
Calculate the total current flowing from the battery.
Using Ohm's Law, $I = \frac{V}{R}$ .
$I_{total} = \frac{V_{total}}{R_{total}}$ $I_{total} = \frac{6 \, \text{V}}{500 \, \Omega}$ $I_{total} = 0.012 \, \text{A}$
Calculate the voltage drop across the $400 \, \Omega$ resistor.
Since the $400 \, \Omega$ resistor is in series with the parallel combination, the total current $I_{total}$ flows through it. The voltmeter measures this voltage.
$V_{400} = I_{total} \times 400 \, \Omega$ $V_{400} = 0.012 \, \text{A} \times 400 \, \Omega$ $V_{400} = 4.8 \, \text{V}$
The reading on the voltmeter is $\text{4.8 V}$ .
