A coil of 500 turns has a magnetic flux of 0.4 Wb linking it. If this flux is reversed in 0.01 s, what is the induced EMF in the coil?

April 13, 2026Physics

ScanSolve AI Answer

Answer

\text{40000 V}

3 steps

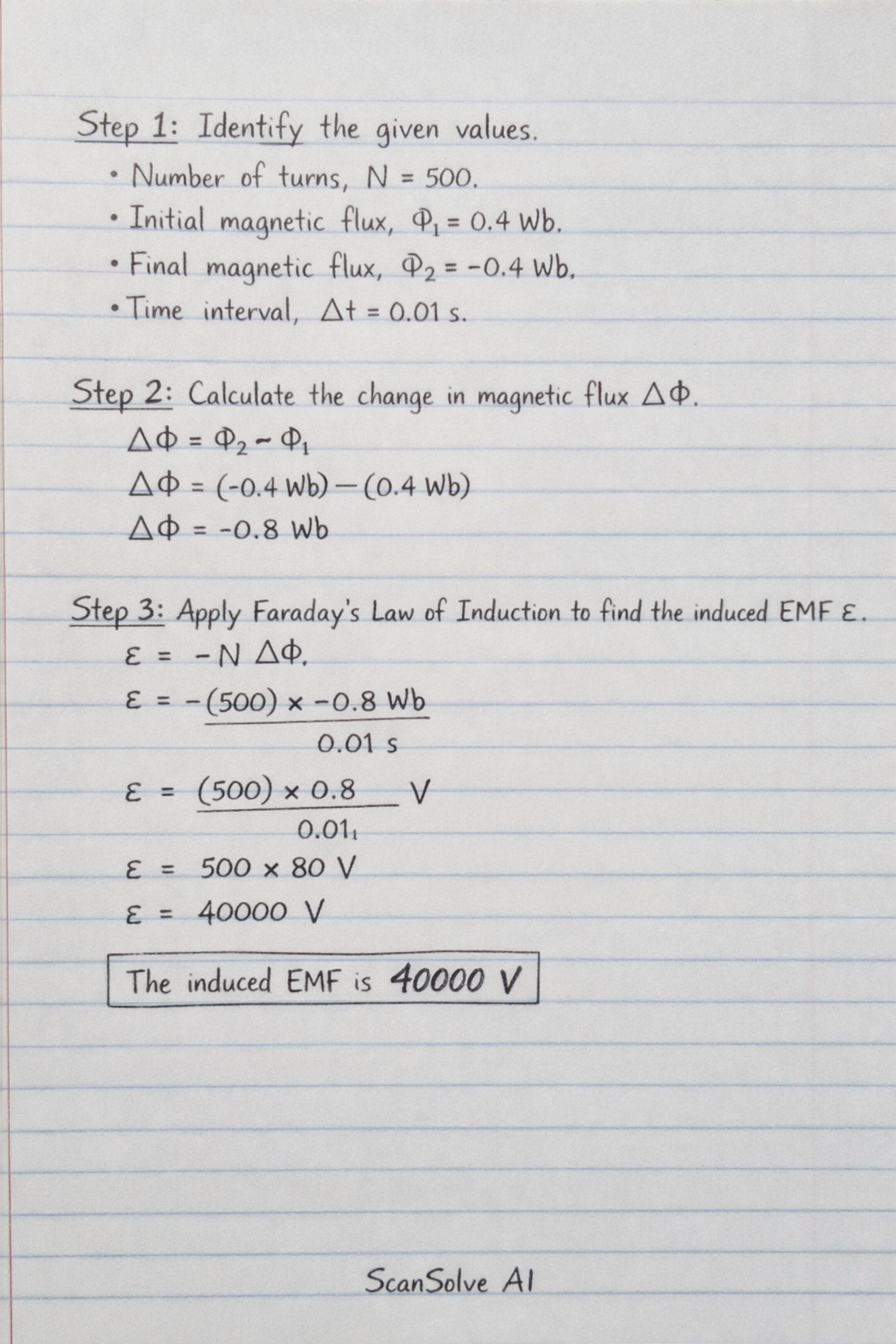

Identify the given values.
Number of turns, $N = 500$ .
Initial magnetic flux, $\Phi_1 = 0.4 \text{ Wb}$ .
Since the flux is reversed, the final magnetic flux, $\Phi_2 = -0.4 \text{ Wb}$ .
Time interval, $\Delta t = 0.01 \text{ s}$ .
Calculate the change in magnetic flux $\Delta \Phi$ .
$\Delta \Phi = \Phi_2 - \Phi_1$ $\Delta \Phi = (-0.4 \text{ Wb}) - (0.4 \text{ Wb})$ $\Delta \Phi = -0.8 \text{ Wb}$
Apply Faraday's Law of Induction to find the induced EMF $\mathcal{E}$ .
$\mathcal{E} = -N \frac{\Delta \Phi}{\Delta t}$ $\mathcal{E} = -(500) \times \frac{-0.8 \text{ Wb}}{0.01 \text{ s}}$ $\mathcal{E} = (500) \times \frac{0.8}{0.01} \text{ V}$ $\mathcal{E} = 500 \times 80 \text{ V}$ $\mathcal{E} = 40000 \text{ V}$
The induced EMF is $\text{40000 V}$ .
