A machine has a velocity ratio of 8 and operates at an efficiency of 65%. It is used to lift a load of 2600N. a) Mechanical advantage b) Effort required.

Physics

ScanSolve AI Answer

Answers

2 parts
a
5.2
b

500 N500 \, \text{N}

Step-by-step solution

4 steps

I will solve the complete problem visible in the image. The first part (c) about the motor's power cannot be solved as crucial information (like force, distance, or work done) is missing from the image.

Problem: Machine Calculations

Given:

  • Velocity Ratio (VR) = 8
  • Efficiency (η\eta) = 65%
  • Load = 2600 N

Part a· 2 steps

Mechanical Advantage (M.A.)

  1. Use the formula relating efficiency, mechanical advantage, and velocity ratio.

    η=M.A.V.R.×100%\eta = \frac{\text{M.A.}}{\text{V.R.}} \times 100\%

  2. Rearrange the formula to solve for M.A.

    and substitute the given values.

    M.A.=η×V.R.100%\text{M.A.} = \frac{\eta \times \text{V.R.}}{100\%} M.A.=65%×8100%\text{M.A.} = \frac{65\% \times 8}{100\%} M.A.=65×8100\text{M.A.} = \frac{65 \times 8}{100} M.A.=520100\text{M.A.} = \frac{520}{100} M.A.=5.2\text{M.A.} = 5.2

    The mechanical advantage is 5.2\boxed{5.2}.

Part b

500 N500 \, \text{N}

Effort required

  1. Use the formula for mechanical advantage.

    M.A.=LoadEffort\text{M.A.} = \frac{\text{Load}}{\text{Effort}}

  2. Rearrange the formula to solve for Effort and substitute the known values (M.A.

    from part a and given Load).

    Effort=LoadM.A.\text{Effort} = \frac{\text{Load}}{\text{M.A.}} Effort=2600 N5.2\text{Effort} = \frac{2600 \, \text{N}}{5.2} Effort=500 N\text{Effort} = 500 \, \text{N}

    The effort required is 500 N\boxed{500 \, \text{N}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QA machine lifts a load of 180 N with an effort of 20 N. Calculate the mechanical advantage.QCalculate the mechanical advantage of a machine given the load is 180 N and the effort is 20 N.QA student was using a machine of velocity ratio of 1 where he applied an effort of 750N and had a…QA) Define the term mechanical advantage of a machine. b) The Figure below shows a pulley system…QGive an example of a machine where the load is between the fulcrum and the effort. (ii) A wheel and…
Browse by topic:Mechanics
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

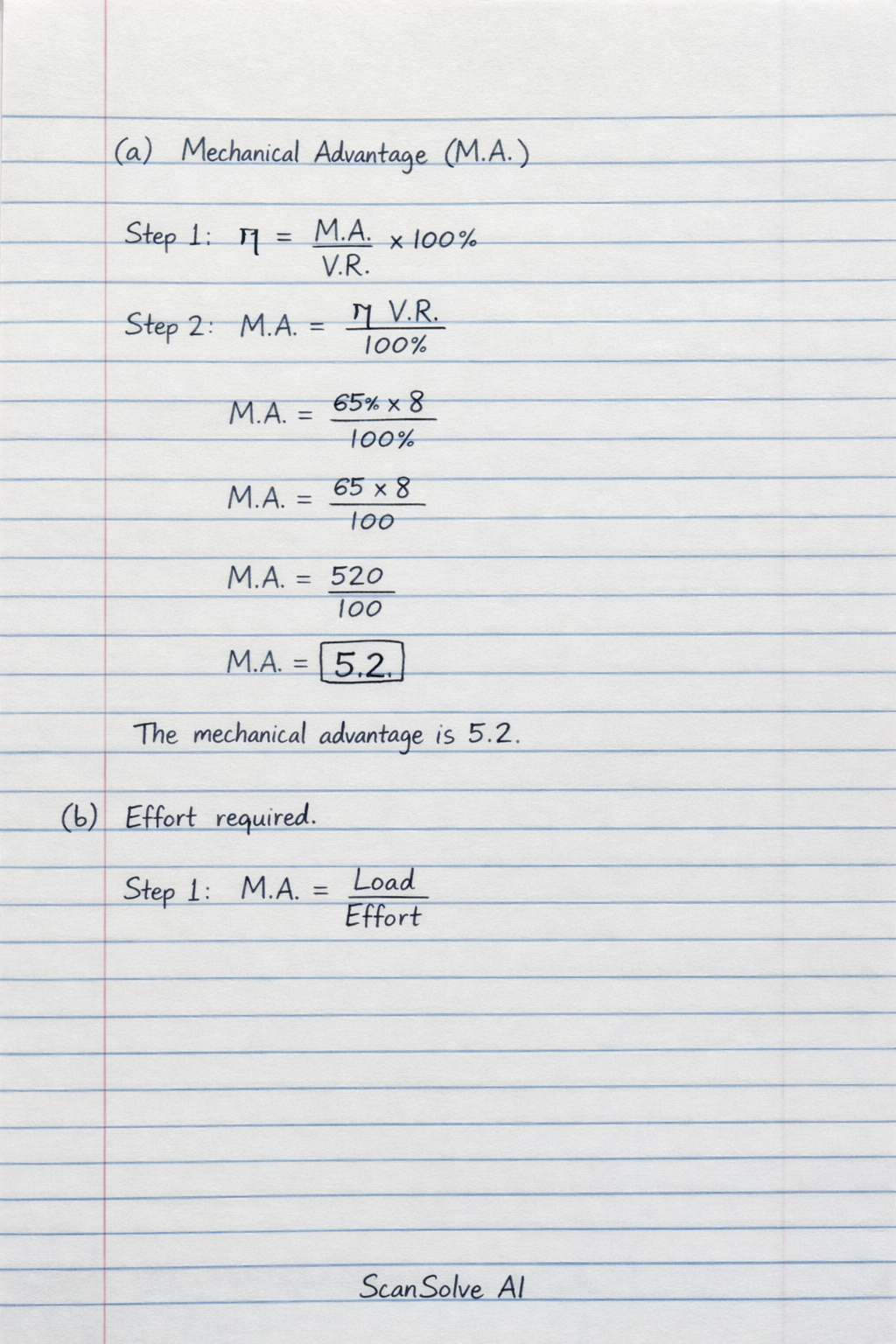

Handwritten step-by-step solution preview
