A rope makes an angle of 40 degrees with the ground. If the horizontal component of the tension in the rope is 100 N, what is the tension and the vertical component of the force?

Physics

ScanSolve AI Answer

Step-by-step solution

3 steps
  1. Identify the given values.

    The angle the rope makes with the ground is θ=40∘\theta = 40^\circ.
    The horizontal component of the force is Fx=100 NF_x = 100 \text{ N}.
    We need to calculate the tension in the rope, TT, and the vertical component of this force, FyF_y.

  2. Calculate the tension in the rope.

    The horizontal component of the tension is given by the formula:

    Fx=Tcos⁡θF_x = T \cos \theta

    Substitute the given values:

    100 N=Tcos⁡(40∘)100 \text{ N} = T \cos(40^\circ)

    To find TT, rearrange the formula:

    T=100 Ncos⁡(40∘)T = \frac{100 \text{ N}}{\cos(40^\circ)}

    Using a calculator, cos⁡(40∘)≈0.7660\cos(40^\circ) \approx 0.7660:

    T=100 N0.7660T = \frac{100 \text{ N}}{0.7660} T≈130.55 NT \approx 130.55 \text{ N}
  3. Calculate the vertical component of the force.

    The vertical component of the tension is given by the formula:

    Fy=Tsin⁡θF_y = T \sin \theta

    Substitute the calculated tension TT and the given angle θ\theta:

    Fy=(130.55 N)sin⁡(40∘)F_y = (130.55 \text{ N}) \sin(40^\circ)

    Using a calculator, sin⁡(40∘)≈0.6428\sin(40^\circ) \approx 0.6428:

    Fy=130.55 N×0.6428F_y = 130.55 \text{ N} \times 0.6428 Fy≈83.90 NF_y \approx 83.90 \text{ N}

    The tension in the rope is 130.55 N\boxed{\text{130.55 N}}.
    The vertical component of this force is 83.90 N\boxed{\text{83.90 N}}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question
Handwritten step-by-step solution preview

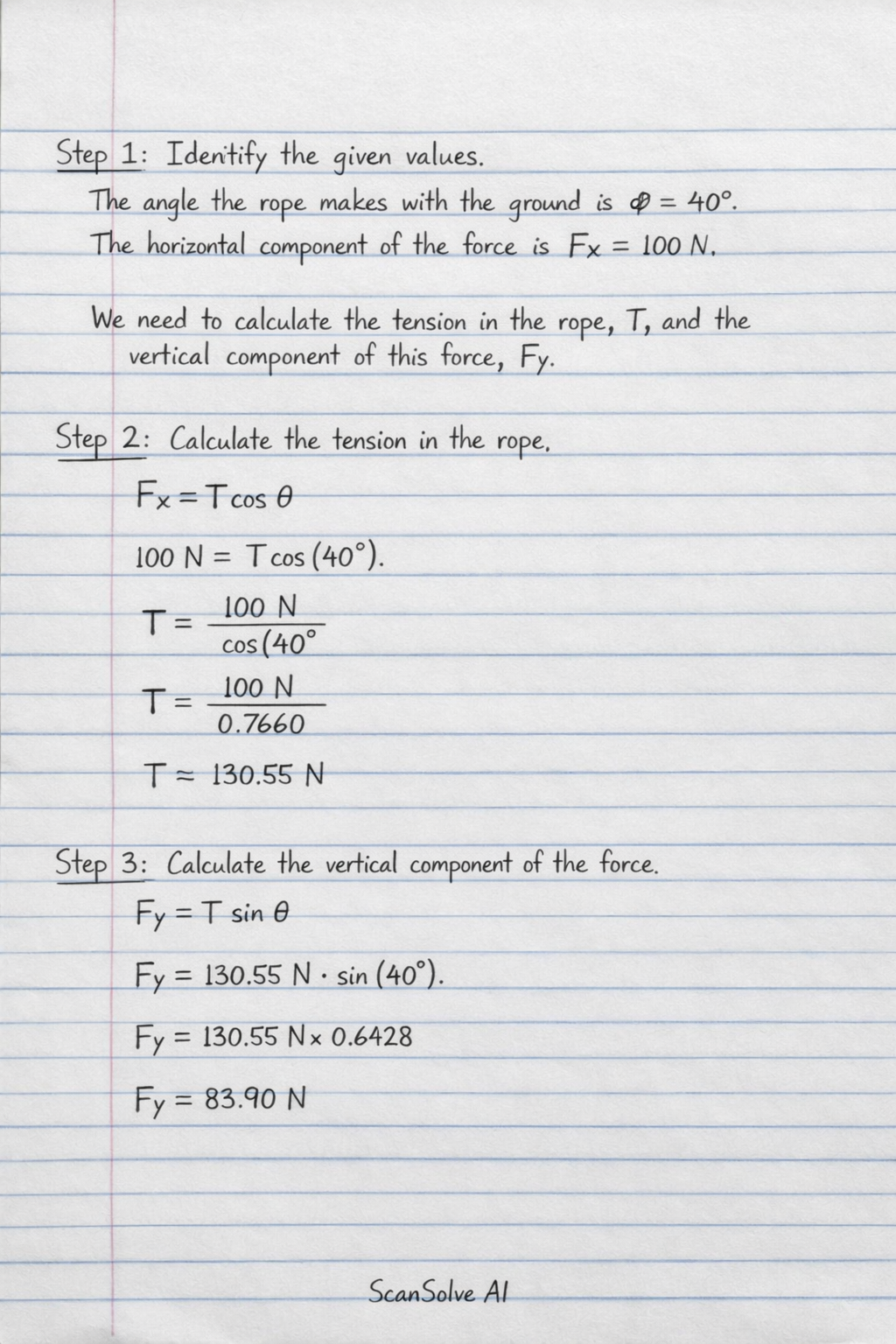

Handwritten Step-by-Step Solution
