A step down transformer has 600 turns in the primary coil. The input voltage is 120 V while the output voltage is 24 V. Determine the number of turns in the secondary coil.

Physics

ScanSolve AI Answer

Step-by-step solution

4 steps

Huu hapa ni utatuzi wa maswali:

Swali la (c)(i): Eleza jinsi mikondo ya eddy inapunguzwa kwenye transfoma.

Mikondo ya eddy hupunguzwa kwa kutumia kiini kilichowekwa tabaka (laminated core). Kiini hiki huundwa na tabaka nyembamba za chuma zilizotenganishwa na nyenzo za kuhami umeme, ambazo huongeza upinzani wa umeme na hivyo kupunguza ukubwa wa mikondo ya eddy.

Swali la (c)(ii): Transfoma ya kupunguza voltage ina mizunguko 600 kwenye koili ya msingi. Voltage ya pembejeo ni 120 V wakati voltage ya pato ni 24 V. Bainisha idadi ya mizunguko kwenye koili ya pili.

  1. Tambua taarifa ulizopewa na fomula inayohusika.

    Tunajua idadi ya mizunguko ya msingi (NpN_p), voltage ya msingi (VpV_p), na voltage ya pili (VsV_s). Tunahitaji kupata idadi ya mizunguko ya pili (NsN_s).
    Np=600N_p = 600
    Vp=120 VV_p = 120 \, \text{V}
    Vs=24 VV_s = 24 \, \text{V}
    Fomula inayohusisha hizi ni:

    VpVs=NpNs\frac{V_p}{V_s} = \frac{N_p}{N_s}

  2. Panga upya fomula ili kupata NsN_s.

    Ns=Np×VsVpN_s = N_p \times \frac{V_s}{V_p}

  3. Badilisha namba kwenye fomula na ufanye hesabu.

    Ns=600×24 V120 VN_s = 600 \times \frac{24 \, \text{V}}{120 \, \text{V}} Ns=600×15N_s = 600 \times \frac{1}{5} Ns=120N_s = 120

  4. Toa jibu la mwisho.

    Idadi ya mizunguko kwenye koili ya pili ni 120\boxed{\text{120}}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QA single phase transformer has 200 turns on the primary, 50 turns on the secondary and 120V applied…QA transformer's secondary coil contains 100 turns and operates at 10 volts. If the turns ratio is…QAssignment A transformer has a primary coil of 200 turns and a secondary coil of 300 turns. If the…QA transformer has an input Voltage of 400kV. If the Output Voltage is 100kV and number of turns in…QExplain electromagnetic induction and calculate the number of turns on the secondary coil of a…
Browse by topic:Electrical Engineering
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

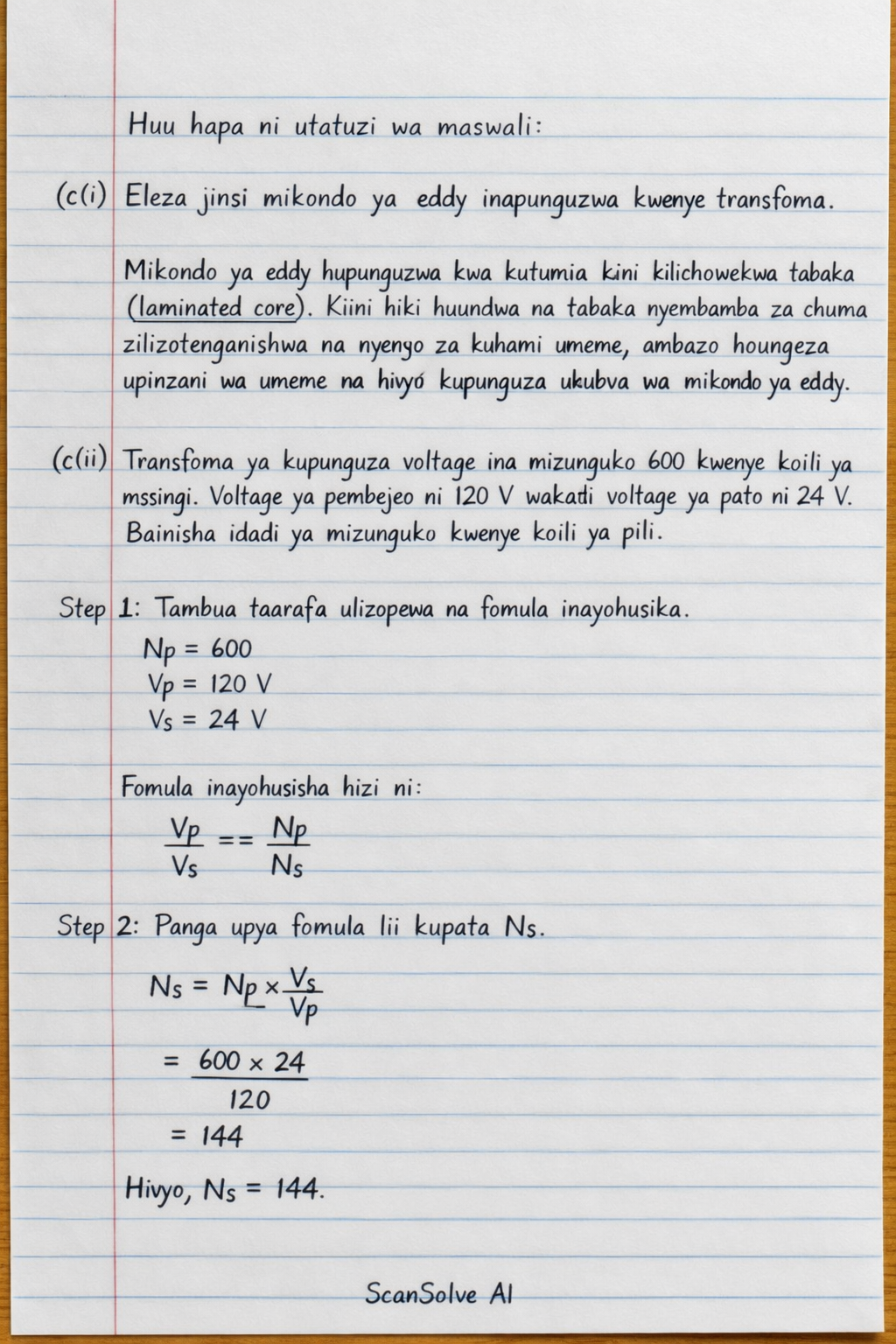

Handwritten step-by-step solution preview
