Assignment A transformer has a primary coil of 200 turns and a secondary coil of 300 turns. If the voltage in the secondary is 100 V: a. Identify the type of transformer. b. Calculate the voltage on the primary coil. c. Find the current in the secondary coil if the primary coil has a current of 5 A.

Physics

ScanSolve AI Answer

Answers

2 parts
b

66.67 V\text{66.67 V}

c

3.33 A\text{3.33 A}

Step-by-step solution

7 steps

Part a· 1 step

To identify the type of transformer, we compare the number of turns in the primary and secondary coils.

  1. Compare the number of turns.

    Given Np=200N_p = 200 turns and Ns=300N_s = 300 turns.
    Since Ns>NpN_s > N_p (300 turns > 200 turns), the transformer increases the voltage from the primary to the secondary.
    Therefore, it is a step-up transformer.

Part b

66.67 V\text{66.67 V}

To calculate the voltage on the primary coil, we use the transformer turns ratio formula.

  1. State the transformer voltage and turns ratio formula.

    VpVs=NpNs\frac{V_p}{V_s} = \frac{N_p}{N_s}

  2. Substitute the given values into the formula.

    We have Np=200N_p = 200 turns, Ns=300N_s = 300 turns, and Vs=100V_s = 100 V.

    Vp100 V=200300\frac{V_p}{100 \text{ V}} = \frac{200}{300}

  3. Solve for VpV_p.

    Vp=100 V×200300V_p = 100 \text{ V} \times \frac{200}{300} Vp=100 V×23V_p = 100 \text{ V} \times \frac{2}{3} Vp=2003 VV_p = \frac{200}{3} \text{ V} Vp≈66.67 VV_p \approx 66.67 \text{ V}

    The voltage on the primary coil is 66.67 V\boxed{\text{66.67 V}}.

Part c

3.33 A\text{3.33 A}

To find the current in the secondary coil, we assume an ideal transformer where the power in the primary coil equals the power in the secondary coil.

  1. State the power relationship for an ideal transformer.

    VpIp=VsIsV_p I_p = V_s I_s

  2. Substitute the known values into the equation.

    We have Vp=66.67V_p = 66.67 V (from part b), Ip=5I_p = 5 A, and Vs=100V_s = 100 V.

    (66.67 V)(5 A)=(100 V)Is(66.67 \text{ V})(5 \text{ A}) = (100 \text{ V}) I_s

  3. Solve for IsI_s.

    Is=(66.67 V)(5 A)100 VI_s = \frac{(66.67 \text{ V})(5 \text{ A})}{100 \text{ V}} Is=333.35 VA100 VI_s = \frac{333.35 \text{ VA}}{100 \text{ V}} Is=3.3335 AI_s = 3.3335 \text{ A}

    The current in the secondary coil is 3.33 A\boxed{\text{3.33 A}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QA transformer's secondary coil contains 100 turns and operates at 10 volts. If the turns ratio is…QA transformer has an input Voltage of 400kV. If the Output Voltage is 100kV and number of turns in…QExplain electromagnetic induction and calculate the number of turns on the secondary coil of a…QA step down transformer has 600 turns in the primary coil. The input voltage is 120 V while the…QA single phase transformer has 200 turns on the primary, 50 turns on the secondary and 120V applied…
Browse by topic:Electrical Engineering
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

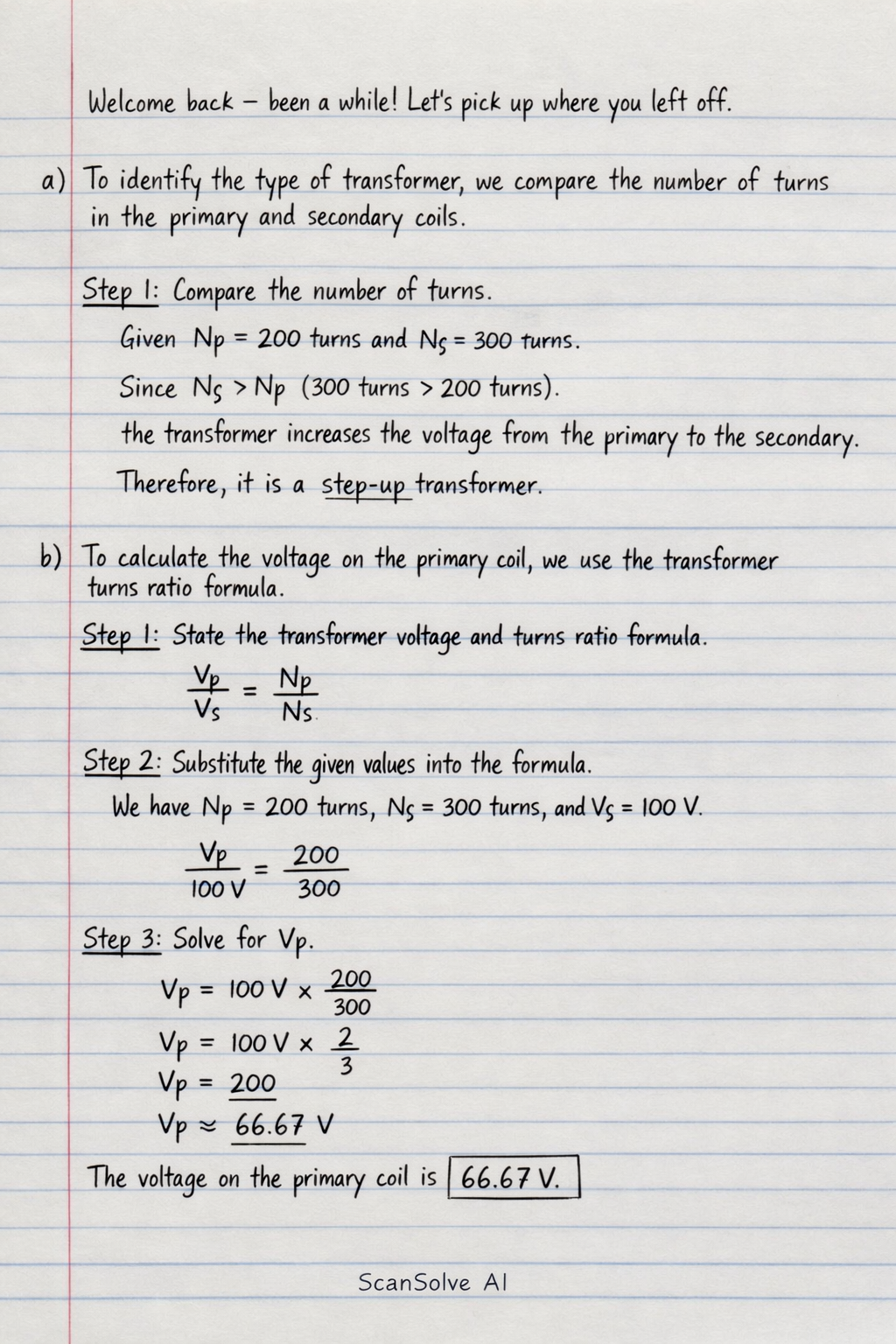

Handwritten step-by-step solution preview
