We read your photo as:

A train rides at 28 m.s-1 in a easterly direction on a straight track after which it brakes for 5 s and reaches a velocity of 15 m.s-1. Calculate the trains acceleration.

Physics

ScanSolve AI Answer

Step-by-step solution

12 steps

Here are the solutions to the physics problems:

Part 4.1· 3 steps

A truck starts from rest and reaches a velocity of 12 m⋅s−112 \text{ m}\cdot\text{s}^{-1} in 3 seconds. Calculate the acceleration of the truck if the original direction of motion is eastwards.

  • vi=0 m⋅s−1v_i = 0 \text{ m}\cdot\text{s}^{-1}
  • Δt=3 s\Delta t = 3 \text{ s}
  • vf=12 m⋅s−1v_f = 12 \text{ m}\cdot\text{s}^{-1}

  1. Write the formula for acceleration.

    a=vf−viΔta = \frac{v_f - v_i}{\Delta t}

  2. Substitute the given values into the formula.

    a=12 m⋅s−1−0 m⋅s−13 sa = \frac{12 \text{ m}\cdot\text{s}^{-1} - 0 \text{ m}\cdot\text{s}^{-1}}{3 \text{ s}}

  3. Calculate the acceleration.

    a=12 m⋅s−13 sa = \frac{12 \text{ m}\cdot\text{s}^{-1}}{3 \text{ s}} a=4 m⋅s−2 Easta = \boxed{4 \text{ m}\cdot\text{s}^{-2} \text{ East}}

Part 4.2· 3 steps

An object that moves at 12 m⋅s−112 \text{ m}\cdot\text{s}^{-1} north reaches a velocity of 53 m⋅s−153 \text{ m}\cdot\text{s}^{-1} after 5 seconds. Calculate the acceleration of the object.

  • vi=12 m⋅s−1v_i = 12 \text{ m}\cdot\text{s}^{-1}
  • Δt=5 s\Delta t = 5 \text{ s}
  • vf=53 m⋅s−1v_f = 53 \text{ m}\cdot\text{s}^{-1}

  1. Write the formula for acceleration.

    a=vf−viΔta = \frac{v_f - v_i}{\Delta t}

  2. Substitute the given values into the formula.

    a=53 m⋅s−1−12 m⋅s−15 sa = \frac{53 \text{ m}\cdot\text{s}^{-1} - 12 \text{ m}\cdot\text{s}^{-1}}{5 \text{ s}}

  3. Calculate the acceleration.

    a=41 m⋅s−15 sa = \frac{41 \text{ m}\cdot\text{s}^{-1}}{5 \text{ s}} a=8.2 m⋅s−2 Northa = \boxed{8.2 \text{ m}\cdot\text{s}^{-2} \text{ North}}

Part 4.3· 3 steps

What is the meaning of your answer in Question 3.1?

I cannot answer this question as Question 3.1 is not provided in the image or previous context.

5.1 A train rides at 28 m⋅s−128 \text{ m}\cdot\text{s}^{-1} in an easterly direction on a straight track after which it brakes for 5 s5 \text{ s} and reaches a velocity of 15 m⋅s−115 \text{ m}\cdot\text{s}^{-1}. Calculate the train's acceleration.

  • vi=28 m⋅s−1v_i = 28 \text{ m}\cdot\text{s}^{-1}
  • Δt=5 s\Delta t = 5 \text{ s}
  • vf=15 m⋅s−1v_f = 15 \text{ m}\cdot\text{s}^{-1}

  1. Write the formula for acceleration.

    a=vf−viΔta = \frac{v_f - v_i}{\Delta t}

  2. Substitute the given values into the formula.

    a=15 m⋅s−1−28 m⋅s−15 sa = \frac{15 \text{ m}\cdot\text{s}^{-1} - 28 \text{ m}\cdot\text{s}^{-1}}{5 \text{ s}}

  3. Calculate the acceleration.

    a=−13 m⋅s−15 sa = \frac{-13 \text{ m}\cdot\text{s}^{-1}}{5 \text{ s}} a=−2.6 m⋅s−2 East (or 2.6 m⋅s−2 West)a = \boxed{-2.6 \text{ m}\cdot\text{s}^{-2} \text{ East (or } 2.6 \text{ m}\cdot\text{s}^{-2} \text{ West)}}

Part 5.2· 3 steps

A motorcycle that moves at 30 m⋅s−130 \text{ m}\cdot\text{s}^{-1} north on a straight road, slams on brakes and stops after 6 s6 \text{ s}. Calculate the acceleration of the motorcycle.

  • vi=30 m⋅s−1v_i = 30 \text{ m}\cdot\text{s}^{-1}
  • Δt=6 s\Delta t = 6 \text{ s}
  • vf=0 m⋅s−1v_f = 0 \text{ m}\cdot\text{s}^{-1} (stops)

  1. Write the formula for acceleration.

    a=vf−viΔta = \frac{v_f - v_i}{\Delta t}

  2. Substitute the given values into the formula.

    a=0 m⋅s−1−30 m⋅s−16 sa = \frac{0 \text{ m}\cdot\text{s}^{-1} - 30 \text{ m}\cdot\text{s}^{-1}}{6 \text{ s}}

  3. Calculate the acceleration.

    a=−30 m⋅s−16 sa = \frac{-30 \text{ m}\cdot\text{s}^{-1}}{6 \text{ s}} a=−5 m⋅s−2 North (or 5 m⋅s−2 South)a = \boxed{-5 \text{ m}\cdot\text{s}^{-2} \text{ North (or } 5 \text{ m}\cdot\text{s}^{-2} \text{ South)}}
Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QA train starts from rest with uniform acceleration for 20 seconds. It travels with uniform velocity…QA train starts from rest and accelerates for 150s, travels at a constant speed for 300s, and then…QA car is traveling at 30 m/s when the driver applies the brakes. The car comes to rest in 5 seconds…QA body moving with a velocity of 15 m/s is uniformly accelerated at 3 m/s². Calculate its velocity…QA train travels 2.97 km in 3 minutes. It accelerates uniformly, then travels at a constant speed…
Browse by topic:Mechanics
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.
Handwritten step-by-step solution preview

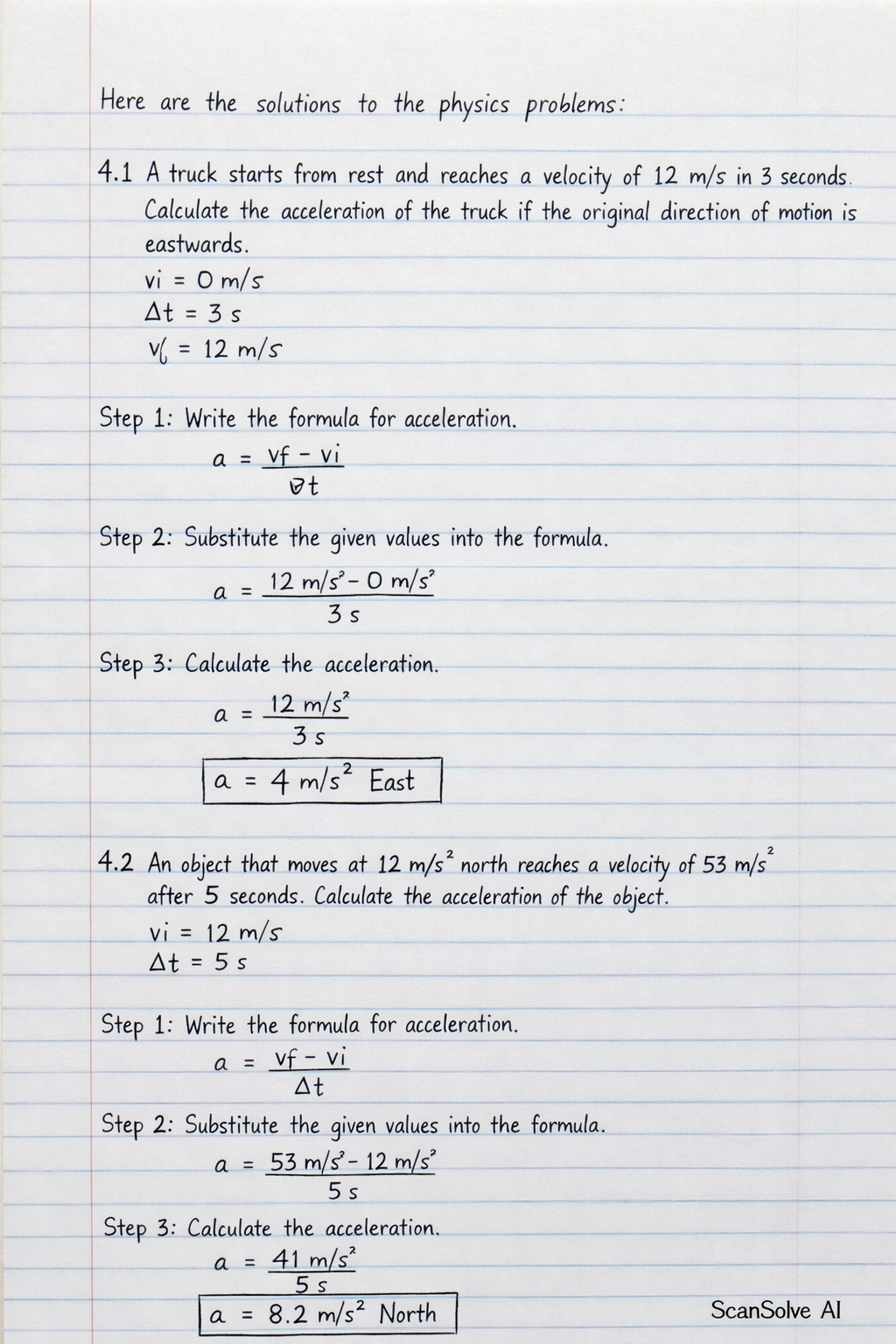

Handwritten Step-by-Step Solution
