We read your photo as:

Convert the input voltage to Volts.

Physics

ScanSolve AI Answer

Answer

33.98 dB\text{33.98 dB}

Step-by-step solution

4 steps
  1. Convert the input voltage to Volts.

    Vin=120 mV=120×10−3 V=0.120 VV_{in} = 120 \text{ mV} = 120 \times 10^{-3} \text{ V} = 0.120 \text{ V}

    The output voltage is given as Vout=6 VV_{out} = 6 \text{ V}.

  2. Calculate the voltage gain in decibels using the formula

    AV,dB=20log⁡10(VoutVin)A_{V,dB} = 20 \log_{10} \left( \frac{V_{out}}{V_{in}} \right)

    Substitute the values:

    AV,dB=20log⁡10(6 V0.120 V)A_{V,dB} = 20 \log_{10} \left( \frac{6 \text{ V}}{0.120 \text{ V}} \right)
  3. Perform the division inside the logarithm.

    AV,dB=20log⁡10(50)A_{V,dB} = 20 \log_{10} (50)
  4. Calculate the logarithm and multiply by 20.

    AV,dB=20×1.69897A_{V,dB} = 20 \times 1.69897 AV,dB=33.9794 dBA_{V,dB} = 33.9794 \text{ dB}

    Rounding to two decimal places:

    AV,dB≈33.98 dBA_{V,dB} \approx 33.98 \text{ dB}

    The voltage gain of the amplifier in decibels is 33.98 dB\text{33.98 dB}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

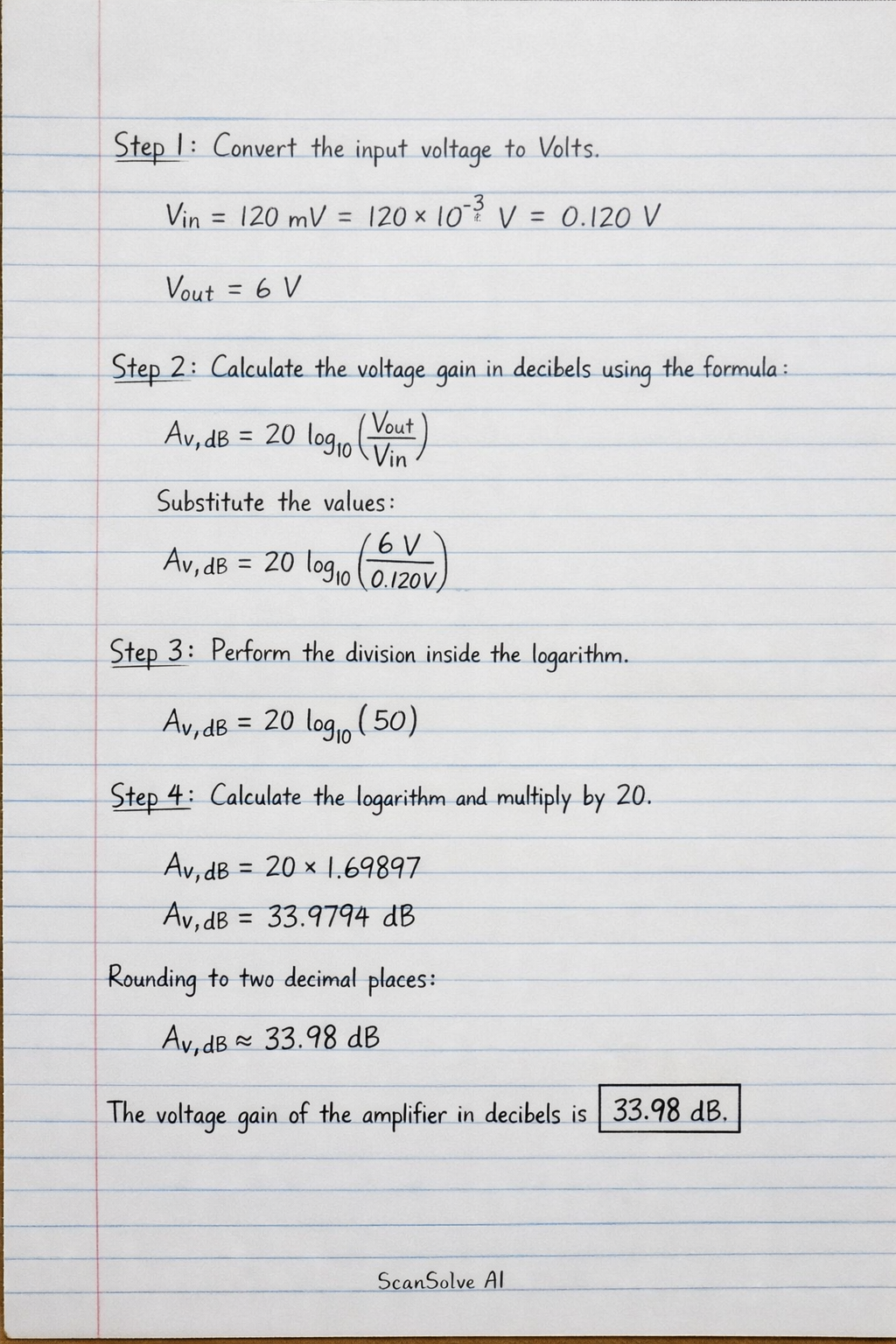

Handwritten step-by-step solution preview
