State Kirchhoff's current and voltage laws and calculate currents I1, I2, and I3.
Physics
ScanSolve AI Answer
Here's a step-by-step solution to the problem:
Part (i): State Kirchhoff's current and voltage laws.
- Kirchhoff's Current Law (KCL): The algebraic sum of currents entering a junction (or node) in an electrical circuit is equal to the algebraic sum of currents leaving the junction. This law is based on the conservation of charge.
- Kirchhoff's Voltage Law (KVL): The algebraic sum of the potential differences (voltages) around any closed loop in an electrical circuit is zero. This law is based on the conservation of energy.
Part (ii): Calculate the currents , , and .
We will apply Kirchhoff
Was this helpful?
Still stuck on this one?
Ask a follow-up, and the answer starts from this question.
Got a different question?Ask your own question
More Physics Questions
QUsing Kirchhoff's Current Law, determine the value of current I in the given circuit diagram.QApply Kirchhoff's Voltage Law for a series circuit.QApply Kirchhoff's Current Law (KCL) at Node V₁.QAnalyze the circuit shown in the image, identify the components and their values, and determine the…QDetermine the current in each segment of the circuit, starting from point 'a' and working left…
Browse by topic:Electrical Engineering

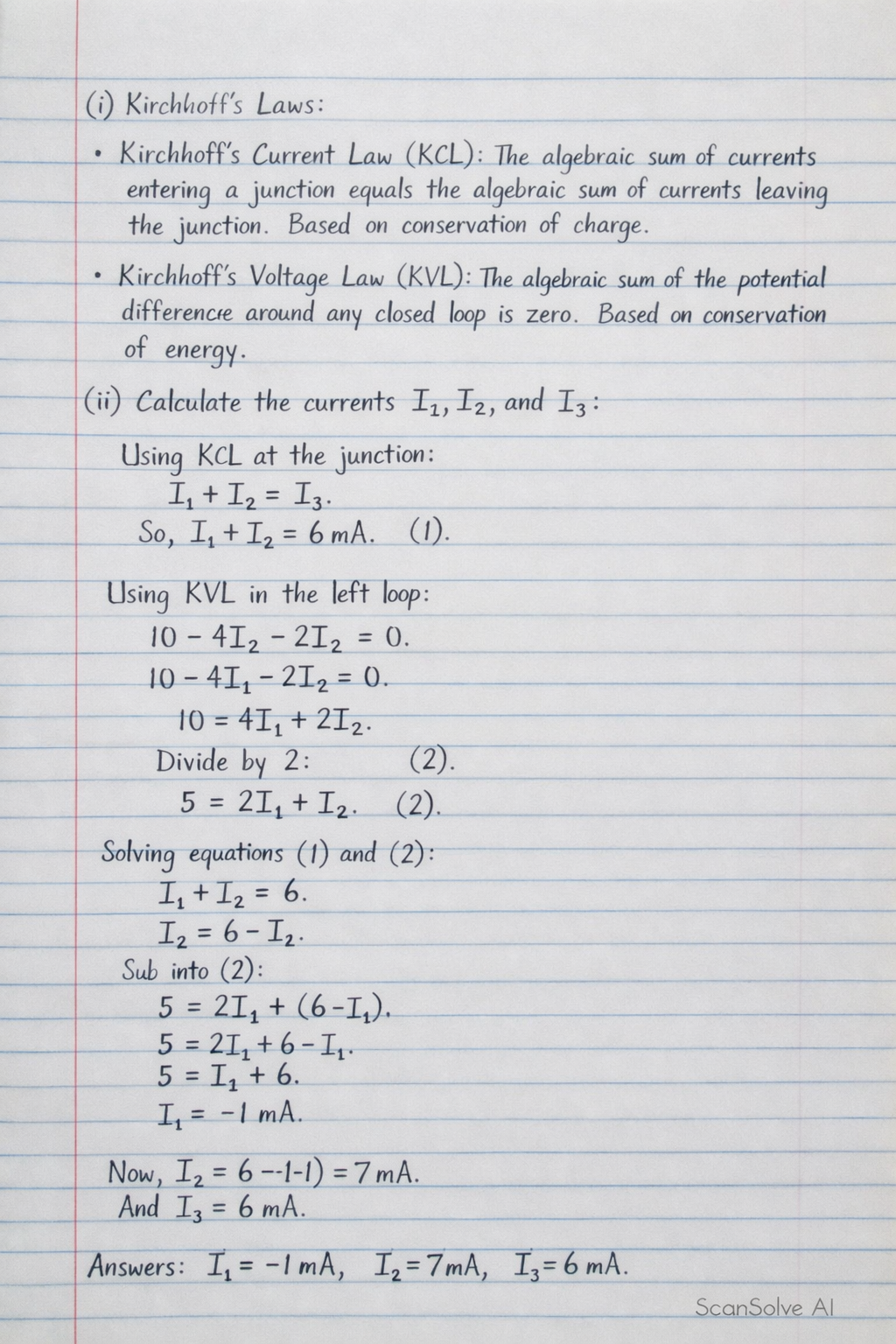

Handwritten Step-by-Step Solution
