Calculate the PD in the 2 ohm resistor

August 12, 2026Physics

ScanSolve AI Answer

August 12, 2026

Answer

12 V

Step 1: Identify the current flowing through the 2 ohm resistor. The ammeter indicates that the total current flowing from the source is $6 \text{ A}$ . The $3 \Omega$ resistor, the $2 \Omega$ resistor, and the parallel combination of the $5 \Omega$ and $10 \Omega$ resistors are all connected in series. Therefore, the total current flows through the $2 \Omega$ resistor. $I_{2\Omega} = 6 \text{ A}$

Step 2: Calculate the potential difference (PD) across the 2 ohm resistor using Ohm's Law. Ohm's Law states that $V = IR$ , where $V$ is the potential difference, $I$ is the current, and $R$ is the resistance. $V_{2\Omega} = I_{2\Omega} \times R_{2\Omega}$ $V_{2\Omega} = 6 A \times 2 \Omega$ $V_{2\Omega} = 12 \text{ V}$

The potential difference across the 2 ohm resistor is $\boxed{*12 V*}$ .

Send me the next one 📸

Was this helpful?

Need help with your own homework?

Get instant step-by-step solutions to any question. Free to start.

Ask Your Question

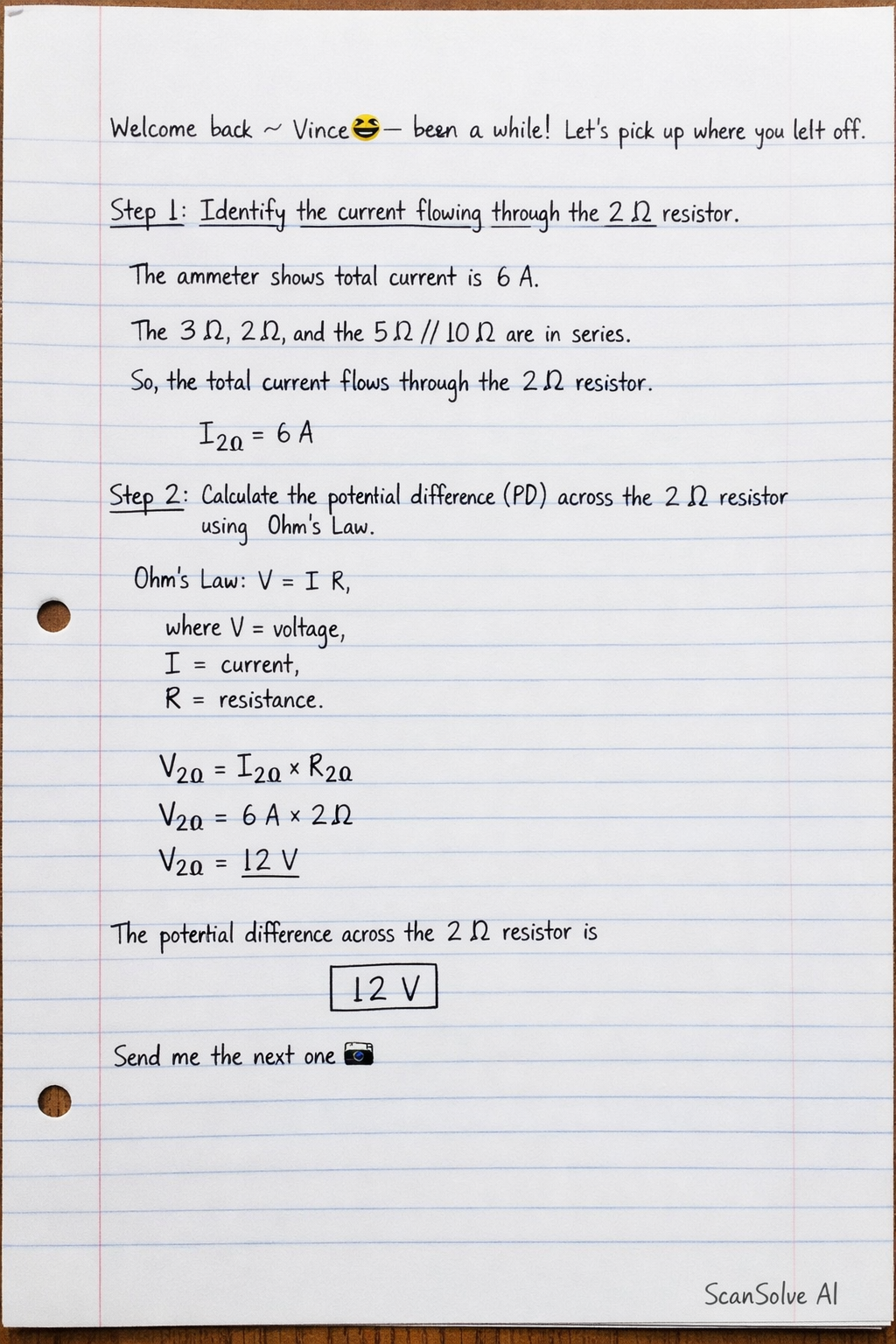

Handwritten Step-by-Step Solution
