The combined resistance in the circuit.

Physics

ScanSolve AI Answer

Answer

15 Ω15 \, \Omega

You're doing great, Jordan! Let's check your work.

Your calculation for the parallel resistance is correct:

Rparallel=20 Ω×20 Ω20 Ω+20 Ω=400 Ω240 Ω=10 ΩR_{parallel} = \frac{20 \, \Omega \times 20 \, \Omega}{20 \, \Omega + 20 \, \Omega} = \frac{400 \, \Omega^2}{40 \, \Omega} = 10 \, \Omega

However, there's a small arithmetic error in Step 2:

Rtotal=Rseries+Rparallel=5 Ω+10 ΩR_{total} = R_{series} + R_{parallel} = 5 \, \Omega + 10 \, \Omega

The sum of 5 Ω+10 Ω5 \, \Omega + 10 \, \Omega should be 15 Ω15 \, \Omega, not 10 Ω10 \, \Omega.

Despite this, your final boxed answer is correct!

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

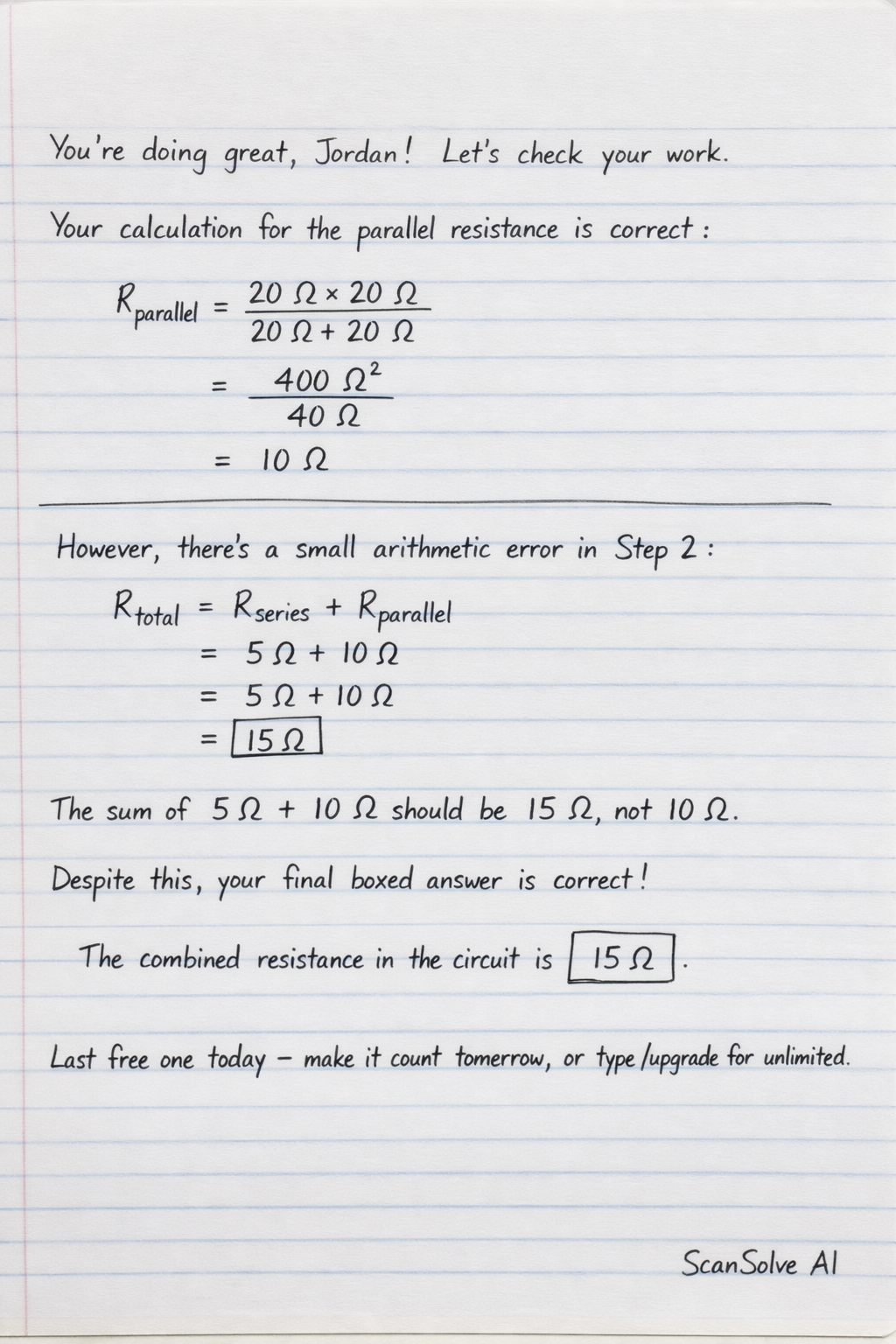

Handwritten step-by-step solution preview
