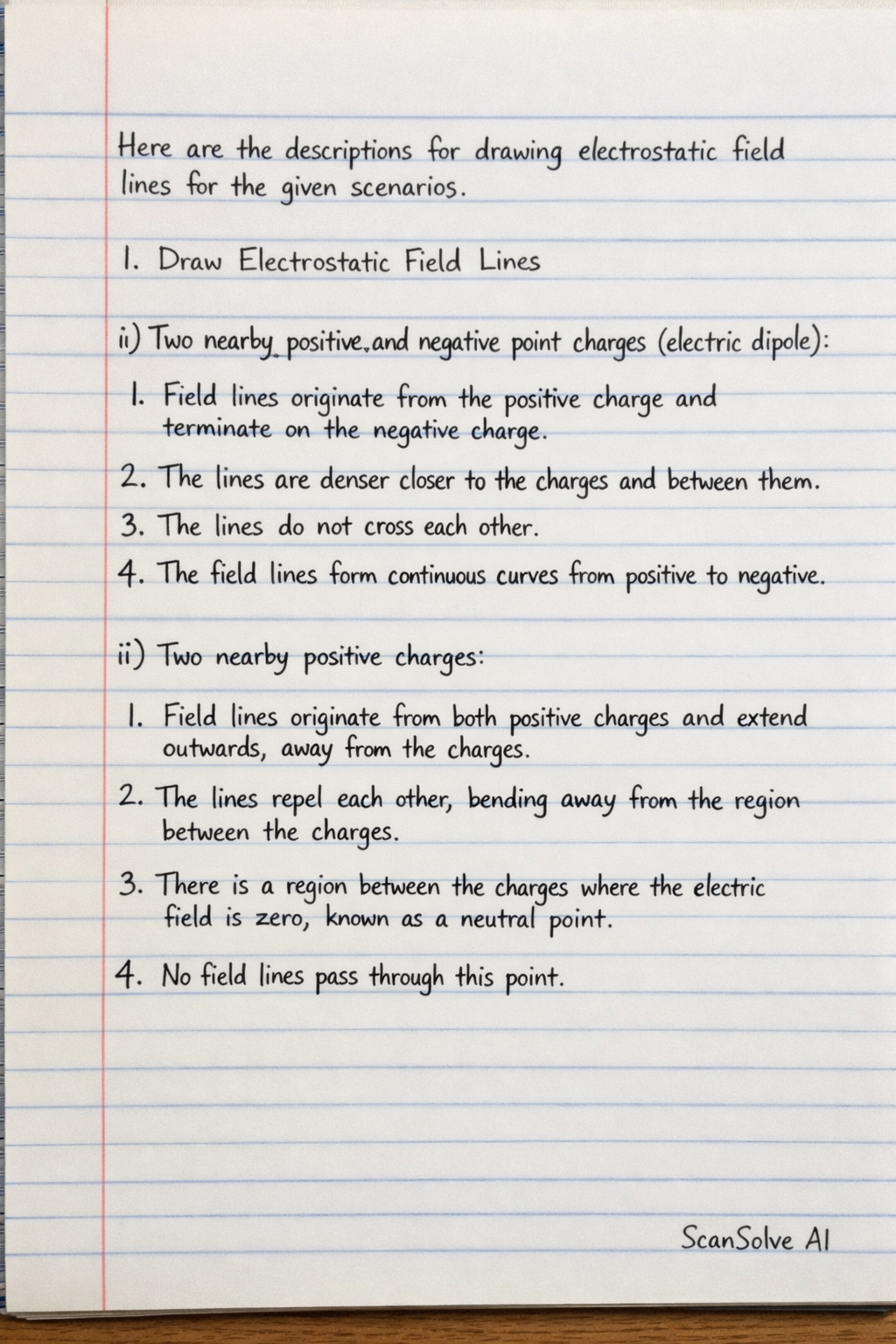

Here are the descriptions for drawing electrostatic field lines for the given scenarios. 1. Draw Electrostatic Field Lines i) Two nearby positive and negative point charges (electric dipole): Field lines originate from the positive charge and terminate on the negative charge. The lines are denser closer to the charges and between them, indicating a stronger field. The lines do not cross each other. The field lines form continuous curves from positive to negative. ii) Two nearby positive charges: Field lines originate from both positive charges and extend outwards, away from the charges. The lines repel each other, bending away from the region directly between the charges. There is a region between the charges where the electric field is zero, known as a neutral point, and no field lines pass through this point. iii) Two nearby negative charges: Field lines terminate on both negative charges, approaching them from all directions. The lines are denser closer to the charges, indicating a stronger field. The lines repel each other, bending away from the region directly between the charges. There is a region between the charges where the electric field is zero, known as a neutral point, and no field lines pass through this point. Last free one today — make it count tomorrow, or type /upgrade for unlimited.
