Two boys pull a toy with a force 10N and 15N inclined at 60° to each other. Did their resultant in magnitude and direction

Physics

ScanSolve AI Answer

Step-by-step solution

2 steps

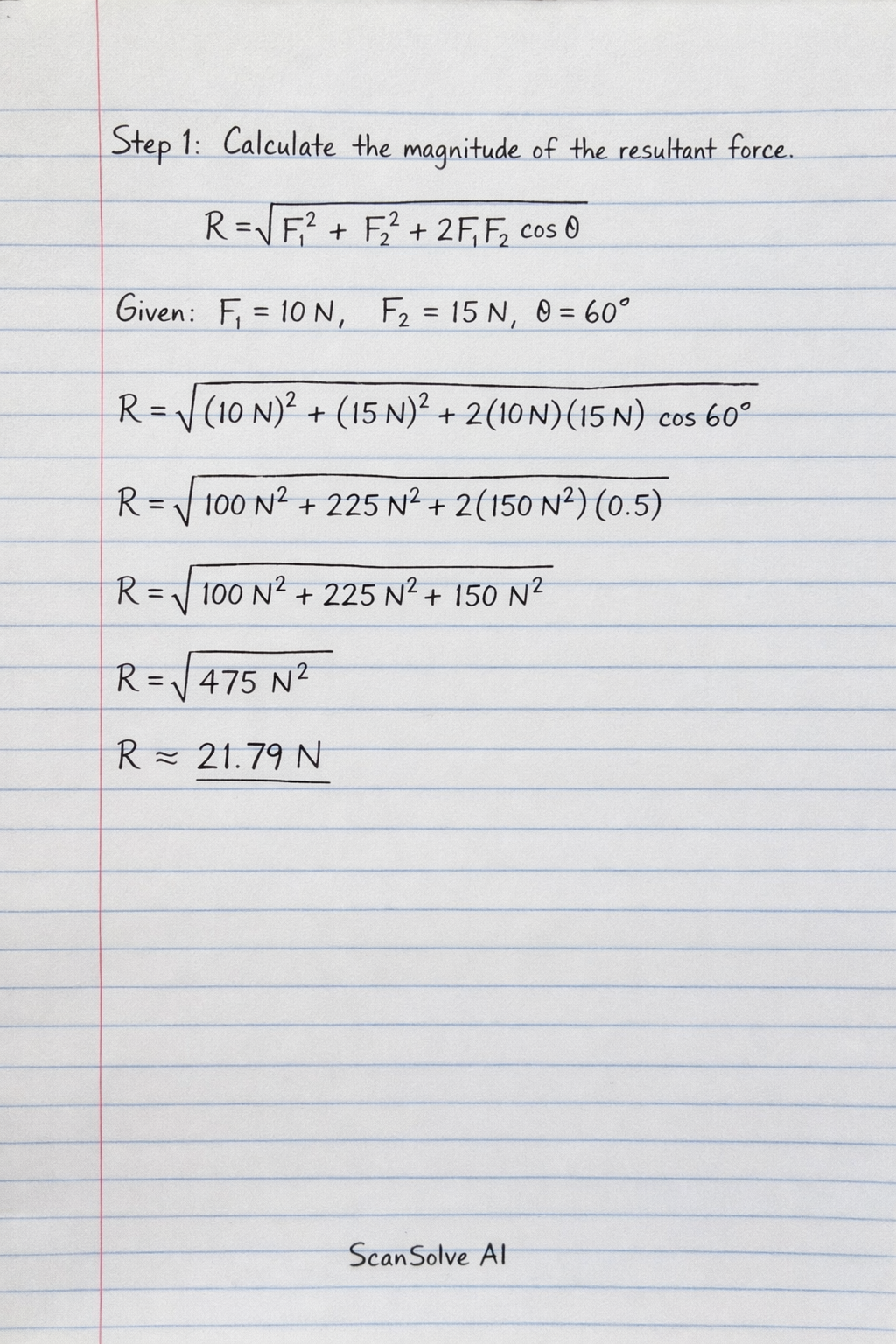

  1. Calculate the magnitude of the resultant force.

    We use the formula for the magnitude of the resultant of two forces F1F_1 and F2F_2 acting at an angle θ\theta to each other:

    R=F12+F22+2F1F2cos⁡θR = \sqrt{F_1^2 + F_2^2 + 2F_1F_2 \cos\theta}

    Given F1=10 NF_1 = 10 \text{ N}, F2=15 NF_2 = 15 \text{ N}, and θ=60∘\theta = 60^\circ.

    R=(10 N)2+(15 N)2+2(10 N)(15 N)cos⁡(60∘)R = \sqrt{(10 \text{ N})^2 + (15 \text{ N})^2 + 2(10 \text{ N})(15 \text{ N}) \cos(60^\circ)} R=100 N2+225 N2+2(150 N2)(0.5)R = \sqrt{100 \text{ N}^2 + 225 \text{ N}^2 + 2(150 \text{ N}^2)(0.5)} R=100 N2+225 N2+150 N2R = \sqrt{100 \text{ N}^2 + 225 \text{ N}^2 + 150 \text{ N}^2} R=475 N2R = \sqrt{475 \text{ N}^2} R≈21.79 NR \approx 21.79 \text{ N}
  2. Calculate the direction of the resultant force.

    Let α\alpha be the angle the resultant force makes with the 10 N10 \text{ N} force. We can use the Law of Sines:

    F2sin⁡α=Rsin⁡θ\frac{F_2}{\sin\alpha} = \frac{R}{\sin\theta}

    Rearrange to solve for sin⁡α\sin\alpha:

    sin⁡α=F2sin⁡θR\sin\alpha = \frac{F_2 \sin\theta}{R}

    Substitute the values:

    sin⁡α=15 N×sin⁡(60∘)21.79 N\sin\alpha = \frac{15 \text{ N} \times \sin(60^\circ)}{21.79 \text{ N}} sin⁡α=15×0.866021.79\sin\alpha = \frac{15 \times 0.8660}{21.79} sin⁡α=12.9921.79\sin\alpha = \frac{12.99}{21.79} sin⁡α≈0.5961\sin\alpha \approx 0.5961

    Now, find α\alpha:

    α=arcsin⁡(0.5961)\alpha = \arcsin(0.5961) α≈36.59∘\alpha \approx 36.59^\circ

    The resultant force has a magnitude of approximately 21.79 N21.79 \text{ N} and is directed at an angle of approximately 36.59∘36.59^\circ with respect to the 10 N10 \text{ N} force.

    The final answer is Magnitude: 21.79 N, Direction: 36.59∘ with the 10 N force\boxed{\text{Magnitude: } 21.79 \text{ N, Direction: } 36.59^\circ \text{ with the } 10 \text{ N force}}.
