Two trains, A and B, are travelling towards each other on parallel tracks. Train A is 150 m long and travelling at 164 km/h. Train B is 100 m long and travelling at 88 km/h. If the front of Train A is

Physics

ScanSolve AI Answer

Answer

7 seconds\text{7 seconds}

Step-by-step solution

4 steps

Here's the solution for question 7.

  1. Convert speeds to meters per second (m/s).

    Train A speed: 164 km/h164 \text{ km/h}
    Train B speed: 88 km/h88 \text{ km/h}

    1 km/h=1000 m3600 s=518 m/s1 \text{ km/h} = \frac{1000 \text{ m}}{3600 \text{ s}} = \frac{5}{18} \text{ m/s}

    Speed of Train A (VAV_A):

    VA=164×518=82018=4109 m/sV_A = 164 \times \frac{5}{18} = \frac{820}{18} = \frac{410}{9} \text{ m/s}

    Speed of Train B (VBV_B):

    VB=88×518=44018=2209 m/sV_B = 88 \times \frac{5}{18} = \frac{440}{18} = \frac{220}{9} \text{ m/s}
  2. Determine the total distance to be covered for the trains to completely pass each other.

    The trains are initially 240 m240 \text{ m} apart.
    Length of Train A (LAL_A): 150 m150 \text{ m}
    Length of Train B (LBL_B): 100 m100 \text{ m}
    The total distance the trains must cover relative to each other to completely pass is the initial distance between them plus their combined lengths.

    Dtotal=240 m+150 m+100 m=490 mD_{total} = 240 \text{ m} + 150 \text{ m} + 100 \text{ m} = 490 \text{ m}
  3. Calculate the relative speed of the trains.

    Since the trains are travelling towards each other, their relative speed is the sum of their individual speeds.

    Vrelative=VA+VB=4109+2209=6309=70 m/sV_{relative} = V_A + V_B = \frac{410}{9} + \frac{220}{9} = \frac{630}{9} = 70 \text{ m/s}
  4. Calculate the time taken for the trains to completely pass each other.

    Time (tt) = Total distance / Relative speed

    t=DtotalVrelative=490 m70 m/s=7 st = \frac{D_{total}}{V_{relative}} = \frac{490 \text{ m}}{70 \text{ m/s}} = 7 \text{ s}

    The time that elapses before the two trains completely pass each other is 7 seconds\boxed{\text{7 seconds}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

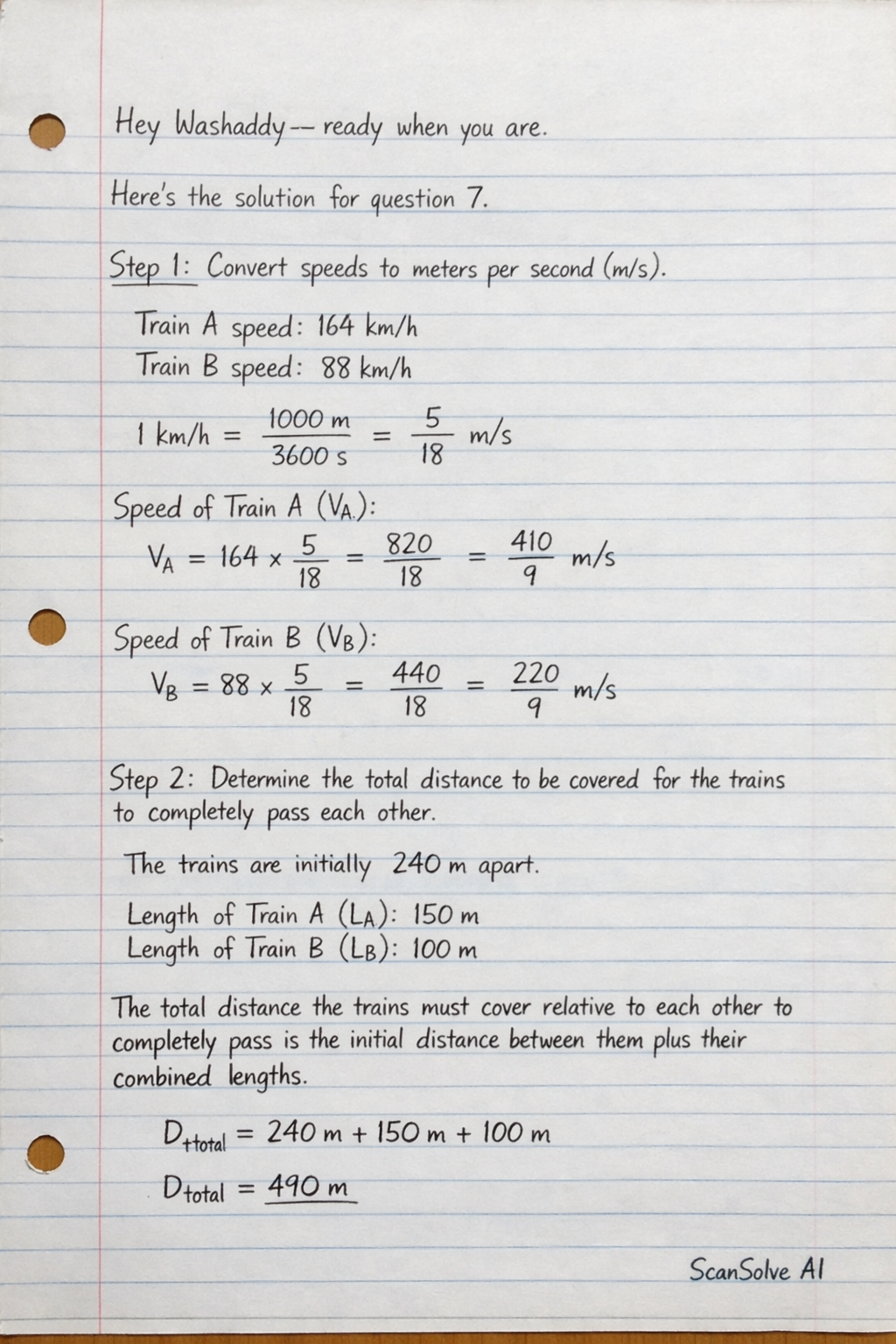

Handwritten step-by-step solution preview
