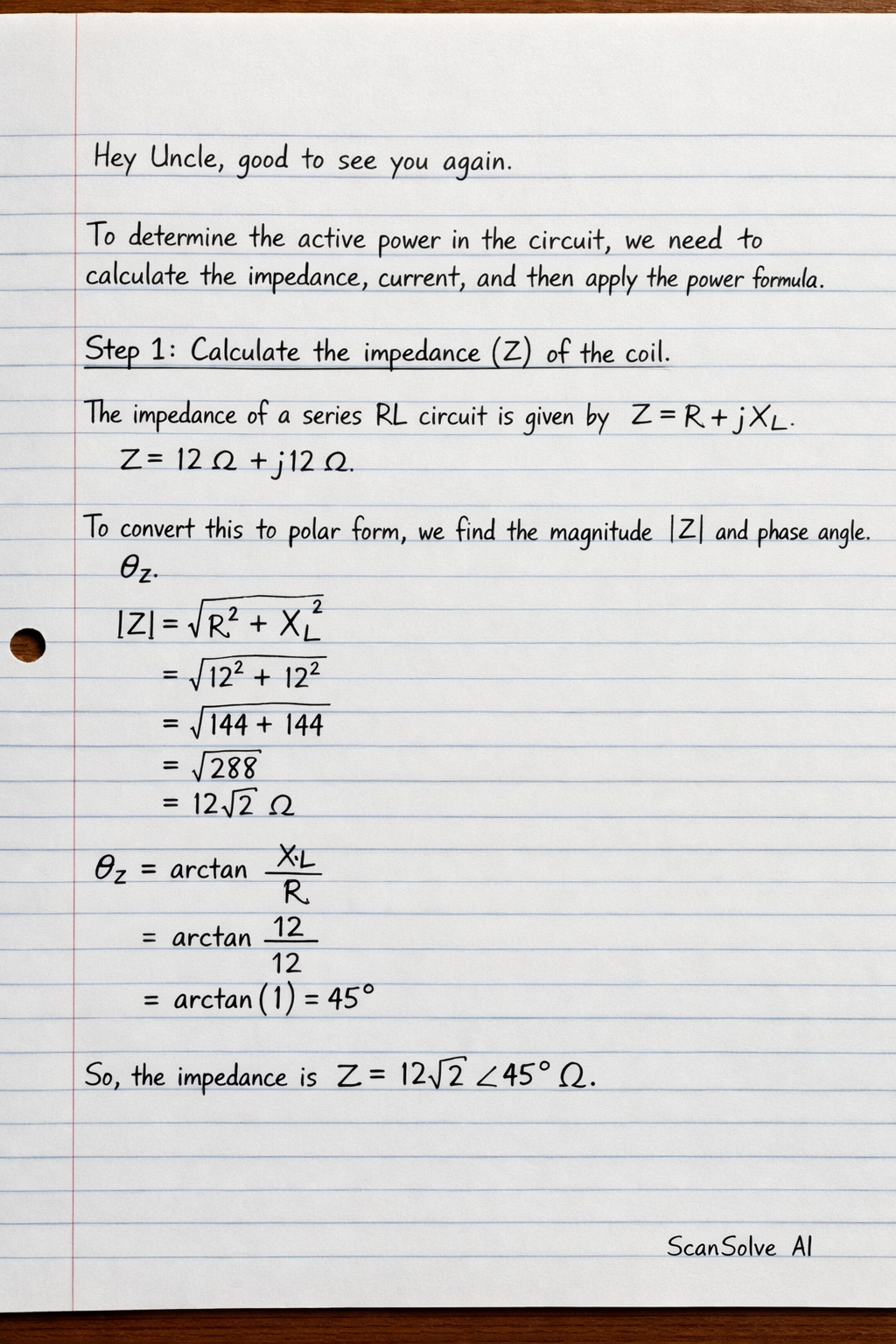

To determine the active power in the circuit, we need to calculate the impedance, current, and then apply the power formula. Step 1: Calculate the impedance (Z) of the coil. The impedance of a series RL circuit is given by Z = R + jX_L. Z = 12 \, + j12 \, To convert this to polar form, we find the magnitude |Z| and phase angle _Z. |Z| = sqrt(R^2 + X_L^2) = sqrt(12^2 + 12^2) = sqrt(144 + 144) = sqrt(288) = 12sqrt(2) \, _Z = ((X_L)/(R)) = ((12)/(12)) = (1) = 45^ So, the impedance is Z = 12sqrt(2) 45^ \, . Step 2: Calculate the current (I) flowing through the circuit. Using Ohm's Law for AC circuits, I = (V)/(Z). Given V = 52 30^ \, V. I = 52 30^ \, V12sqrt(2) 45^ \, |I| = (52)/(12sqrt(2)) = (13)/(3sqrt(2)) = 13sqrt(2)6 \, A _I = 30^ - 45^ = -15^ So, the current is I = 13sqrt(2)6 -15^ \, A. Step 3: Calculate the active power (P). Active power can be calculated using the formula P = |I|^2 R, where |I| is the magnitude of the current and R is the resistance. P = (13sqrt(2)6)^2 × 12 \, P = ((169 × 2)/(36)) × 12 P = ((169)/(18)) × 12 P = (169 × 12)/(18) = (169 × 2)/(3) = (338)/(3) \, W P ≈ 112.67 \, W The active power in the circuit is 112.67 W. Send me the next one 📸
