Solve reaction at B and C Solve T(x) and M(x) and draw its diagrams
This chemistry question involves key chemical concepts and calculations. The detailed solution below walks through each step, from identifying the reaction type to computing the final answer.
ScanSolve AI Answer
Welcome back Jason🕵🏻♂️🥷🏻 — been a while! Let's pick up where you left off.

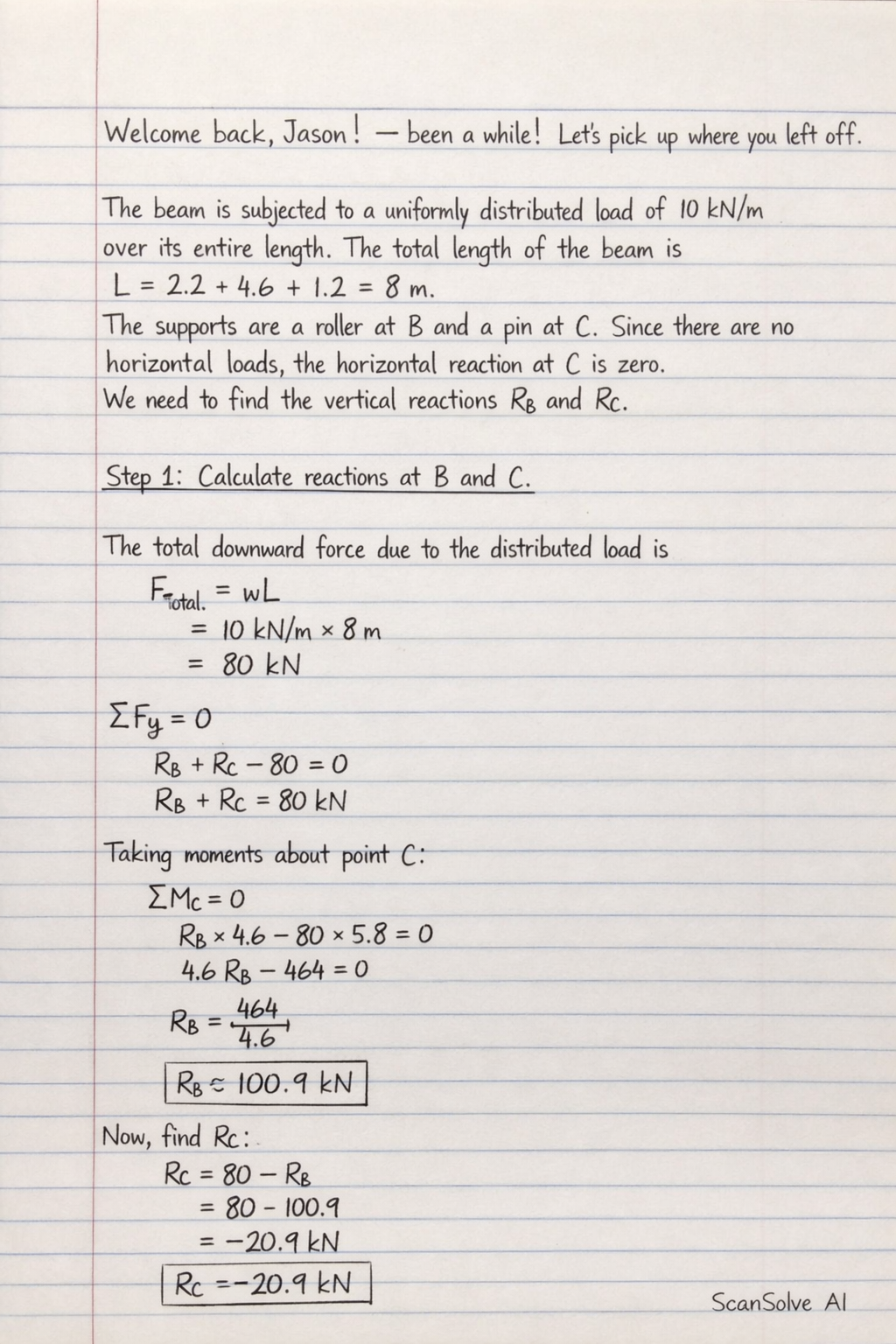

The beam is subjected to a uniformly distributed load of $10 \, \text{kN/m}$ over its entire length. The total length of the beam is $L = 2.2 + 4.6 + 1.2 = 8 \, \text{m}$.
The supports are a roller at B and a pin at C. Since there are no horizontal loads, the horizontal reaction at C is zero. We need to find the vertical reactions $R_B$ and $R_C$.
Step 1: Calculate reactions at B and C.
The total downward force due to the distributed load is $F_{total
