Describe the shapes and characteristics of S, P, and D atomic orbitals.

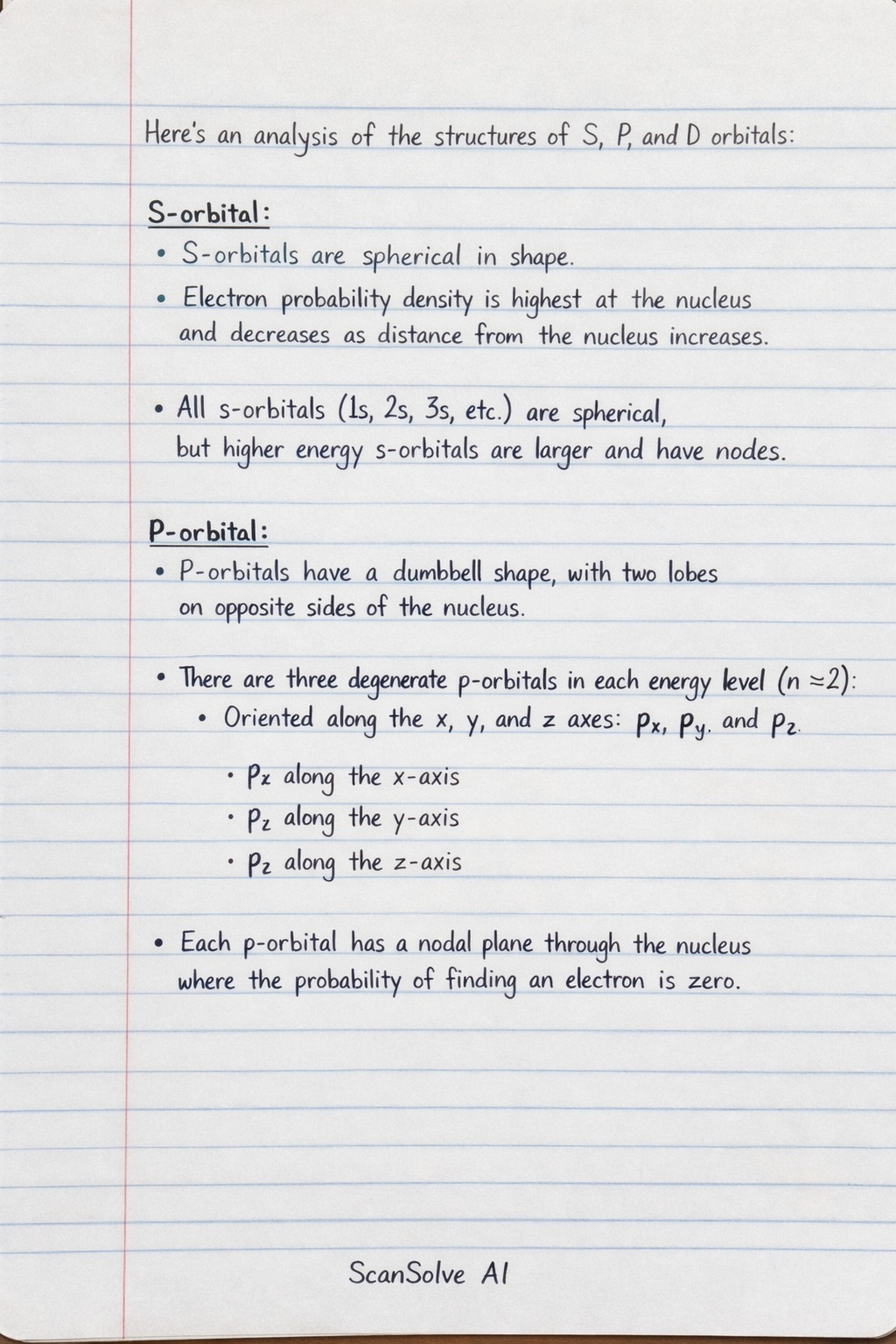

here are the descriptions of the structures of S, P, and D orbitals:

• S-orbital:

  • S-orbitals are spherical in shape.
  • The electron probability density is highest at the nucleus and decreases as the distance from the nucleus increases.
  • All s-orbitals (1s, 2s, 3s, etc.) are spherical, but higher energy s-orbitals are larger and have more nodes.

• P-orbital:

  • P-orbitals have a dumbbell shape, consisting of two lobes on opposite sides of the nucleus.
  • There are three degenerate p-orbitals in each principal energy level (starting from $n=2$), oriented along the x, y, and z axes. These are denoted as $p_x$, $p_y$, and $p_z$.
  • Each p-orbital has a nodal plane passing through the nucleus, where the probability of finding an electron is zero.

• D-orbital:

  • D-orbitals have more complex shapes.
  • There are five degenerate d-orbitals in each principal energy level (starting from $n=3$).
  • Four of the d-orbitals ($d_{xy}$, $d_{yz}$, $d_{xz}$, $d_{x^2-y^2}$) have a cloverleaf shape with four lobes.
  • The fifth d-orbital ($d_{z^2}$) has a unique shape, resembling a dumbbell along the z-axis with a donut-shaped ring around its middle in the xy-plane.
