ScanSolve AI Answer

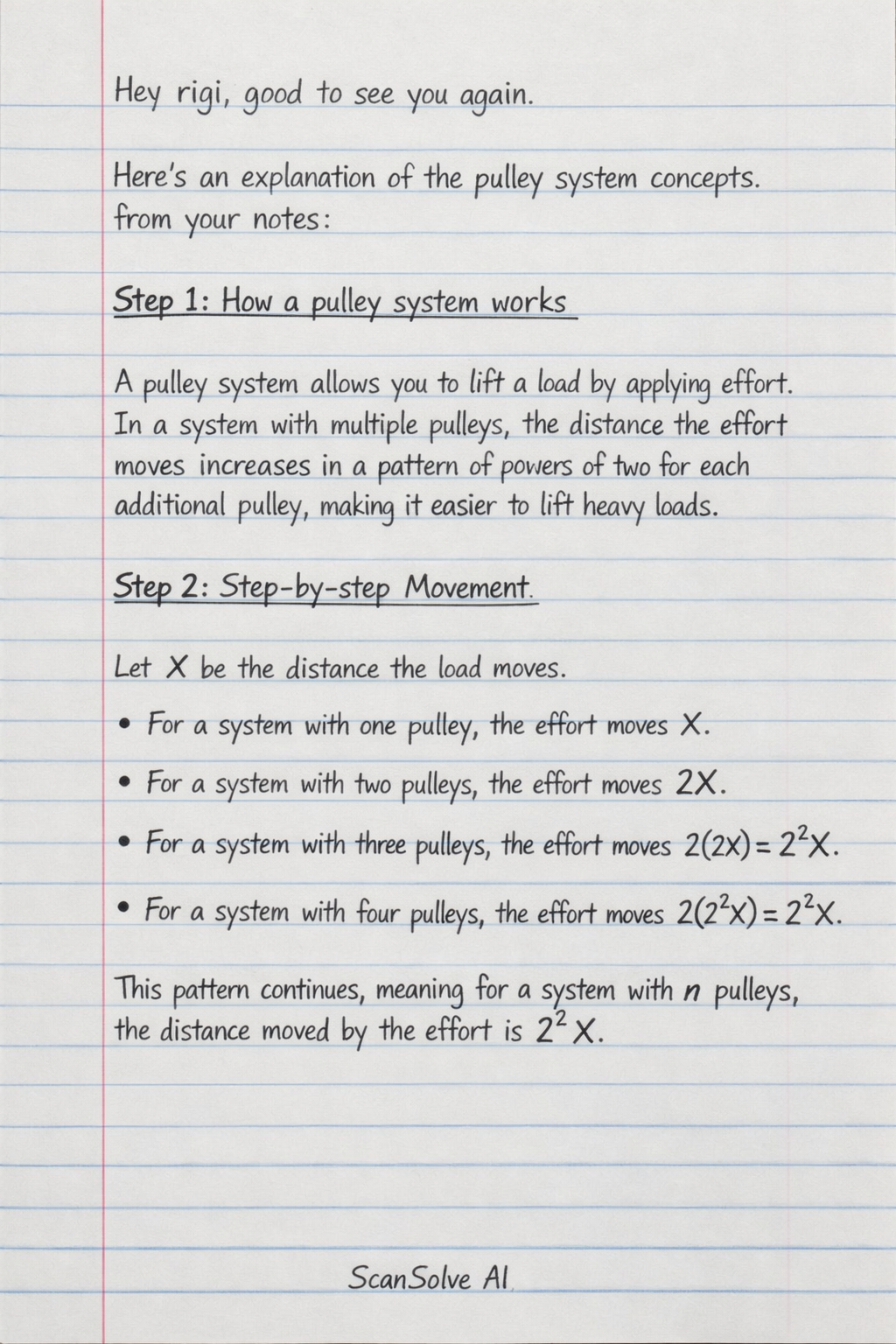

Hey rigi, good to see you again. Here's an explanation of the pulley system concepts from your notes: Step 1: How a pulley system works A pulley system allows you to lift a load by applying effort. In a system with multiple pulleys, the distance the effort moves increases in a pattern of powers of two for each additional pulley, making it easier to lift heavy loads. Step 2: Step-by-step Movement Let X be the distance the load moves. • For a system with one pulley, the effort moves X. • For a system with two pulleys, the effort moves 2X. • For a system with three pulleys, the effort moves 2(2X) = 2^2X. • For a system with four pulleys, the effort moves 2(2^2X) = 2^3X. This pattern continues, meaning for a system with n pulleys, the distance moved by the effort is 2^n X. Step 3: Velocity Ratio (VR) The Velocity Ratio (VR) is the ratio of the distance moved by the effort to the distance moved by the load. VR = Distance moved by effortDistance moved by load For a pulley system with n pulleys, where the effort moves 2^n X and the load moves X: VR = (2^n X)/(X) Canceling X from the numerator and denominator: VR = 2^n So, the final formula for the Velocity Ratio in a pulley system with n pulleys is: VR = 2^n Step 4: Mechanical Advantage (MA) Mechanical Advantage (MA) is the ratio of the load lifted to the effort applied. MA = LoadEffort For an ideal pulley system (one with no friction or energy loss), the Mechanical Advantage is equal to the Velocity Ratio. Therefore, for an ideal pulley system: MA = VR = 2^n Step 5: Efficiency Efficiency () is a measure of how effectively a machine converts input work into output work. It is calculated as the ratio of Mechanical Advantage to Velocity Ratio. = (MA)/(VR) Send me the next one 📸
