What are the velocity ratio of the pulley's and the mechanical advantage of the pulley's

Physics

ScanSolve AI Answer

Step-by-step solution

9 steps

To determine the velocity ratio (VR) and mechanical advantage (MA) of the pulley systems, we need to count the number of rope segments supporting the movable block (or the load). For an ideal pulley system, the mechanical advantage is equal to the velocity ratio.

General Principles:

  • Velocity Ratio (VR): For a block and tackle pulley system, the velocity ratio is equal to the number of rope segments supporting the movable block and the load.
  • Mechanical Advantage (MA): For an ideal pulley system (ignoring friction), the mechanical advantage is equal to the velocity ratio.

Let's analyze each pulley system shown:

For Pulley System 2:

  1. Count the number of rope segments supporting the load.

    In system 2, there are 2 rope segments supporting the movable pulley and the load.

  2. Determine the Velocity Ratio (VR).

    The velocity ratio is equal to the number of supporting rope segments.

    VR=2\text{VR} = 2

  3. Determine the Mechanical Advantage (MA).

    Assuming an ideal pulley system (no friction), the mechanical advantage is equal to the velocity ratio.

    MA=VR=2\text{MA} = \text{VR} = 2

    For Pulley System 2:
    Velocity Ratio = 2\boxed{2}
    Mechanical Advantage = 2\boxed{2}

    For Pulley System 3:

  4. Count the number of rope segments supporting the load.

    In system 3, there are 3 rope segments supporting the movable pulleys and the load.

  5. Determine the Velocity Ratio (VR).

    VR=3\text{VR} = 3

  6. Determine the Mechanical Advantage (MA).

    Assuming an ideal pulley system, the mechanical advantage is equal to the velocity ratio.

    MA=VR=3\text{MA} = \text{VR} = 3

    For Pulley System 3:
    Velocity Ratio = 3\boxed{3}
    Mechanical Advantage = 3\boxed{3}

    For Pulley System 4:

  7. Count the number of rope segments supporting the load.

    In system 4, there are 4 rope segments supporting the movable pulleys and the load.

  8. Determine the Velocity Ratio (VR).

    VR=4\text{VR} = 4

  9. Determine the Mechanical Advantage (MA).

    Assuming an ideal pulley system, the mechanical advantage is equal to the velocity ratio.

    MA=VR=4\text{MA} = \text{VR} = 4

    For Pulley System 4:
    Velocity Ratio = 4\boxed{4}
    Mechanical Advantage = 4\boxed{4}

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QExplain the concept of velocity ratio in a pulley system and derive its formula.QAnalyze the pulley system shown in Figure 4, calculating its velocity ratio, the weight of the…QCalculate the velocity ratio, weight of cement bag, mechanical advantage, and efficiency of the…QExplain the different types of pulleys, including their characteristics, mechanical advantage, and…QDetermine the velocity ratio of the machine.
Browse by topic:Mechanics
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

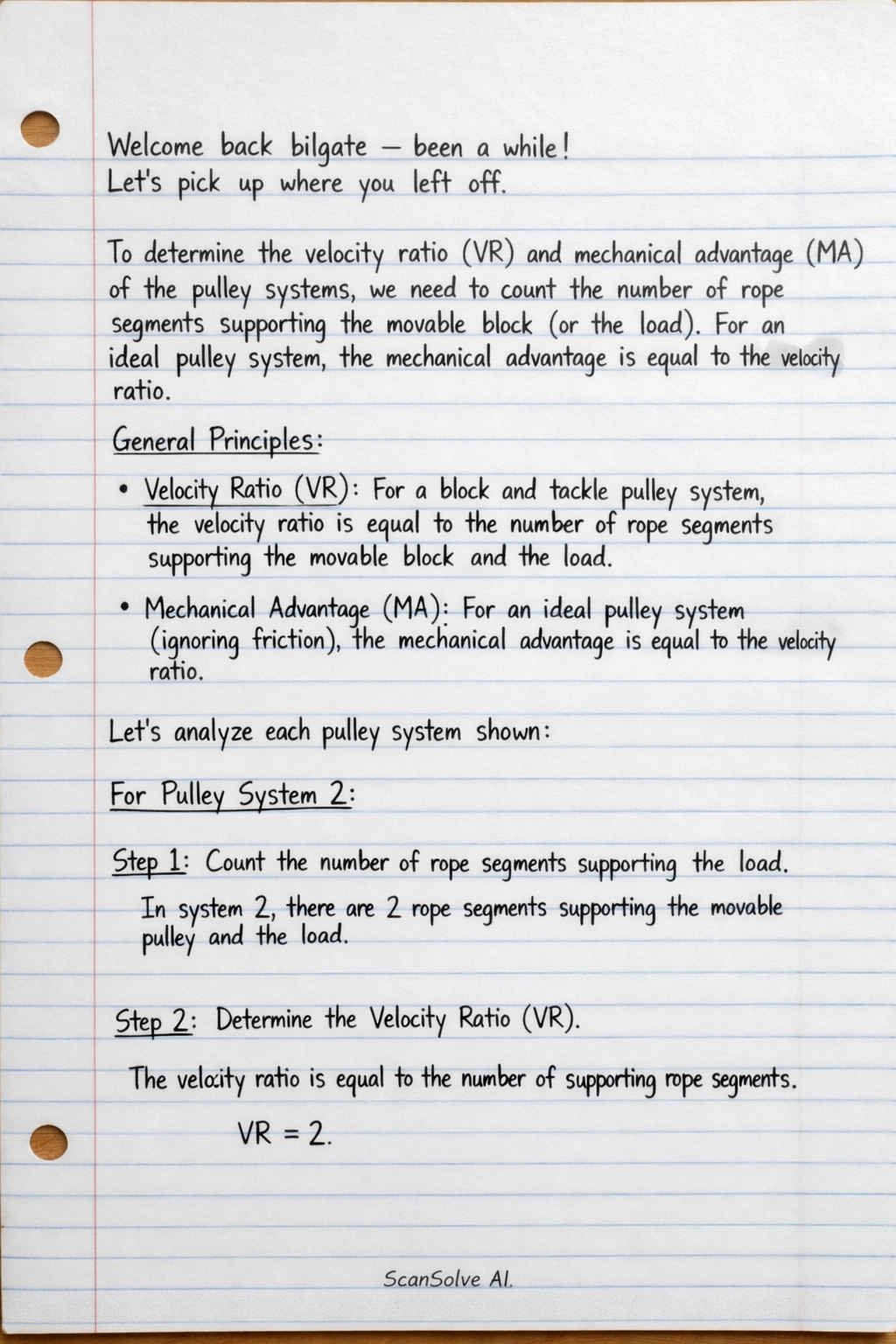

Handwritten step-by-step solution preview
