We read your photo as:

Calculate the energy stored in a capacitor with capacitance 8 extμF and voltage 10V.

Physics

ScanSolve AI Answer

Step-by-step solution

4 steps

  1. Identify the given values from the diagram.

    The capacitance of the capacitor is C=8μFC = 8 \mu F.
    The voltage across the capacitor is V=10VV = 10 V.

  2. Convert the capacitance to Farads.

    C=8μF=8×10−6FC = 8 \mu F = 8 \times 10^{-6} F

  3. Use the formula for the energy stored in a capacitor.

    The energy EE stored in a capacitor is given by the formula:

    E=12CV2E = \frac{1}{2}CV^2

  4. Substitute the values into the formula and calculate the energy.

    E=12(8×10−6F)(10V)2E = \frac{1}{2} (8 \times 10^{-6} F) (10 V)^2 E=12(8×10−6F)(100V2)E = \frac{1}{2} (8 \times 10^{-6} F) (100 V^2) E=(4×10−6)×100JE = (4 \times 10^{-6}) \times 100 J E=400×10−6JE = 400 \times 10^{-6} J E=4×10−4JE = 4 \times 10^{-4} J

    The energy stored in the capacitor is \boxed{\text{4 \times 10^{-4} J}}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QCalculate the energy stored in a capacitor with capacitance 8 ext esizebox0.5em! extµF and voltage…QCalculate the capacitance needed to store 10 kWh of energy at 1000 V and the energy stored in a 1.0…QA capacitor having capacitance of 5μF is charged to a potential difference of 10,000V. The energy…QCalculate the equivalent capacitance of the circuit shown in Figure 3, given C = 2 ext extmu F and V…QA Capacitor stores 20.0 of energy when charged to 60.0v. Calculate its capacitance!
Browse by topic:ElectromagnetismElectrical Engineering
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

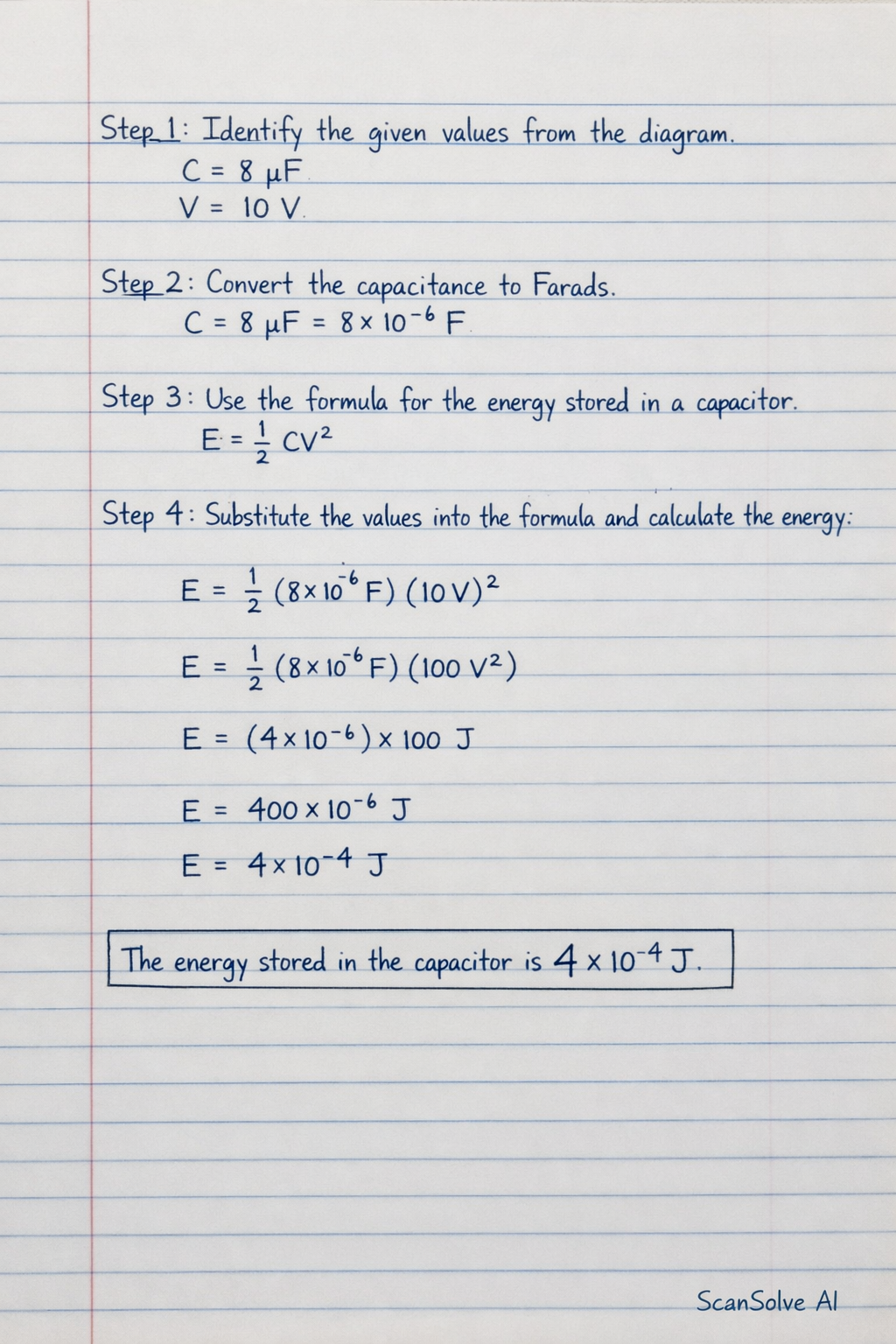

Handwritten step-by-step solution preview
