We read your photo as:

Calculate the initial resistance of the wire. length of wire = 1.0 m, cross sectional area of wire = 2.9 × 10⁻⁸ m2, resistivity of wire = 4.9 × 10⁻⁷ Ω m

Physics

ScanSolve AI Answer

Answer

16.9 Ω\text{16.9 } \Omega

Step-by-step solution

3 steps
  1. Recall the formula for resistance.

    The resistance RR of a wire is given by the formula:

    R=ρLAR = \frac{\rho L}{A}

    where ρ\rho is the resistivity, LL is the length, and AA is the cross-sectional area.

  2. Substitute the given values into the formula.

    Given:
    L=1.0 mL = 1.0 \text{ m}
    A=2.9×10−8 m2A = 2.9 \times 10^{-8} \text{ m}^2
    ρ=4.9×10−7Ω m\rho = 4.9 \times 10^{-7} \Omega \text{ m}

    R=(4.9×10−7Ω m)(1.0 m)2.9×10−8 m2R = \frac{(4.9 \times 10^{-7} \Omega \text{ m})(1.0 \text{ m})}{2.9 \times 10^{-8} \text{ m}^2}
  3. Calculate the initial resistance.

    R=4.9×10−72.9×10−8ΩR = \frac{4.9 \times 10^{-7}}{2.9 \times 10^{-8}} \Omega R=16.89655...ΩR = 16.89655... \Omega

    Rounding to three significant figures:

    R=16.9ΩR = 16.9 \Omega

    The initial resistance of the wire is 16.9 Ω\text{16.9 } \Omega.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

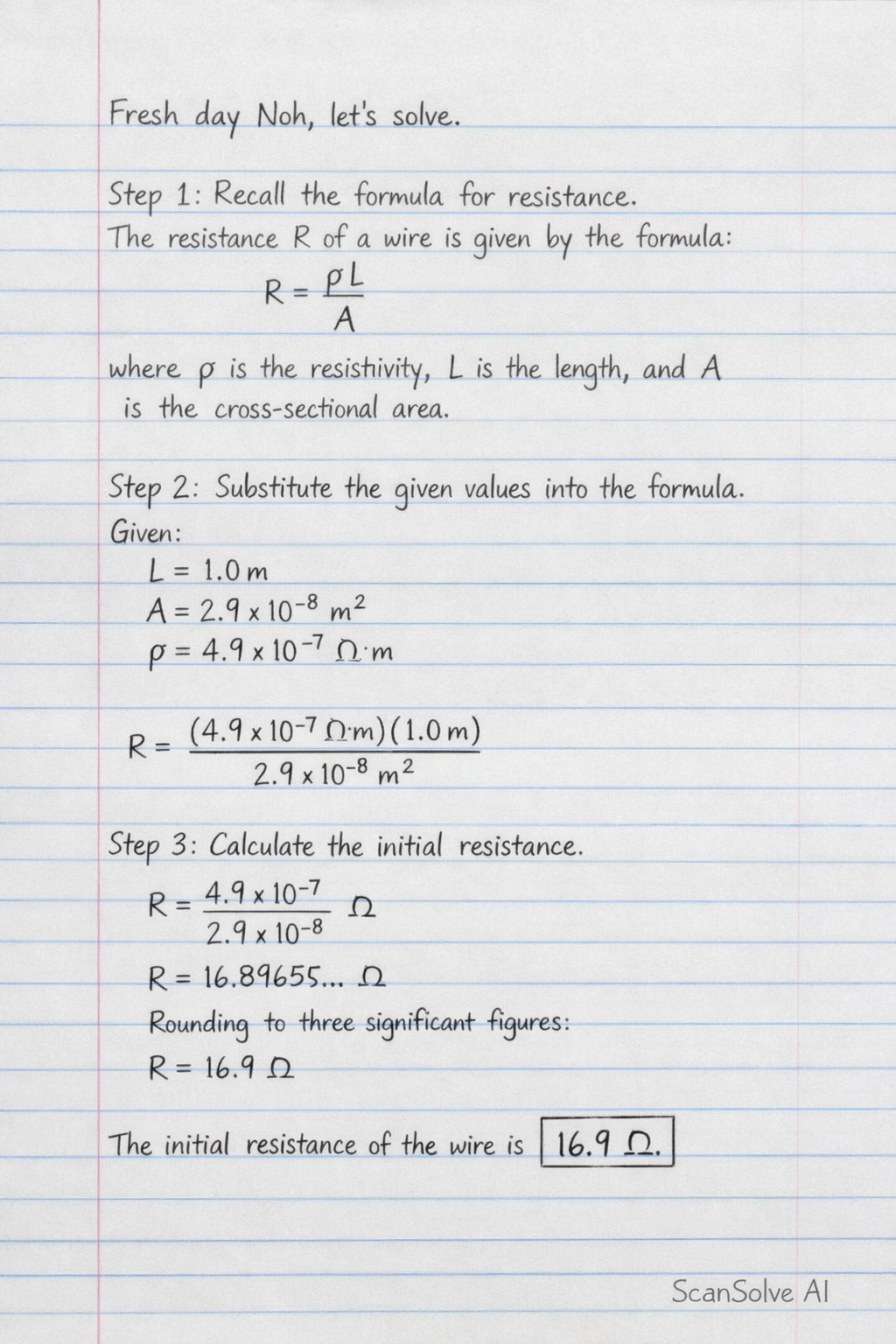

Handwritten step-by-step solution preview
