A potential difference of 4v connected to 4 uniform resistance wire of length 3m and cross section area 9×10⁻⁹m ,when a current of 0.2Ais flowing in a wire . <1> find resistivity of a wire. <2> vonductivity of a wire

Physics

ScanSolve AI Answer

Answer

6.0×10−8Ω⋅m6.0 \times 10^{-8} \Omega \cdot \text{m}

1.67×107 S/m1.67 \times 10^7 \text{ S/m}

Step-by-step solution

3 steps

Haya Jozee, wacha tutatue swali hili la waya.

1. Tafuta resistivity ya waya.

  1. Kokotoa upinzani (RR) wa waya kwa kutumia Sheria ya Ohm (V=IRV = IR).

    Tunapewa:
    Potential difference V=4 VV = 4 \text{ V}
    Current I=0.2 AI = 0.2 \text{ A}

    R=VI=4 V0.2 AR = \frac{V}{I} = \frac{4 \text{ V}}{0.2 \text{ A}} R=20ΩR = 20 \Omega
  2. Kokotoa resistivity (ρ\rho) ya waya kwa kutumia fomula R=ρLAR = \rho \frac{L}{A}.

    Tunapewa:
    Upinzani R=20ΩR = 20 \Omega
    Urefu wa waya L=3 mL = 3 \text{ m}
    Eneo la msalaba A=9×10−9 m2A = 9 \times 10^{-9} \text{ m}^2

    ρ=R×AL\rho = \frac{R \times A}{L} ρ=20Ω×9×10−9 m23 m\rho = \frac{20 \Omega \times 9 \times 10^{-9} \text{ m}^2}{3 \text{ m}} ρ=180×10−93Ω⋅m\rho = \frac{180 \times 10^{-9}}{3} \Omega \cdot \text{m} ρ=60×10−9Ω⋅m\rho = 60 \times 10^{-9} \Omega \cdot \text{m} ρ=6.0×10−8Ω⋅m\rho = 6.0 \times 10^{-8} \Omega \cdot \text{m}

    Resistivity ya waya ni 6.0×10−8Ω⋅m\boxed{6.0 \times 10^{-8} \Omega \cdot \text{m}}.

    2. Conductivity ya waya.

  3. Kokotoa conductivity (σ\sigma) ya waya.

    Conductivity ni kinyume cha resistivity (σ=1ρ\sigma = \frac{1}{\rho}).

    σ=16.0×10−8Ω⋅m\sigma = \frac{1}{6.0 \times 10^{-8} \Omega \cdot \text{m}} σ=0.1666...×108 S/m\sigma = 0.1666... \times 10^8 \text{ S/m} σ=1.67×107 S/m\sigma = 1.67 \times 10^7 \text{ S/m}

    Conductivity ya waya ni 1.67×107 S/m\boxed{1.67 \times 10^7 \text{ S/m}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

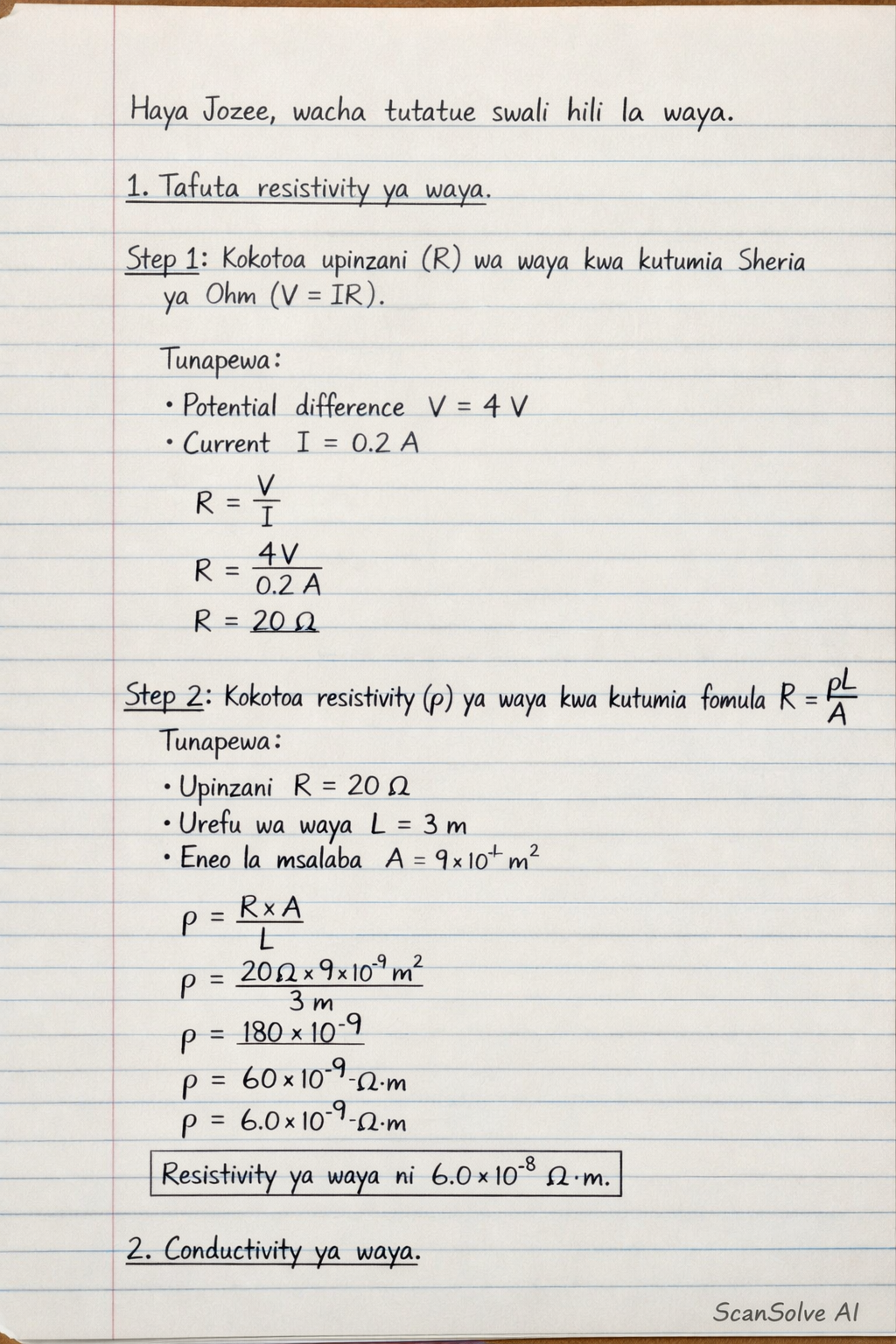

Handwritten step-by-step solution preview
