This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.
ScanSolve AI Answer

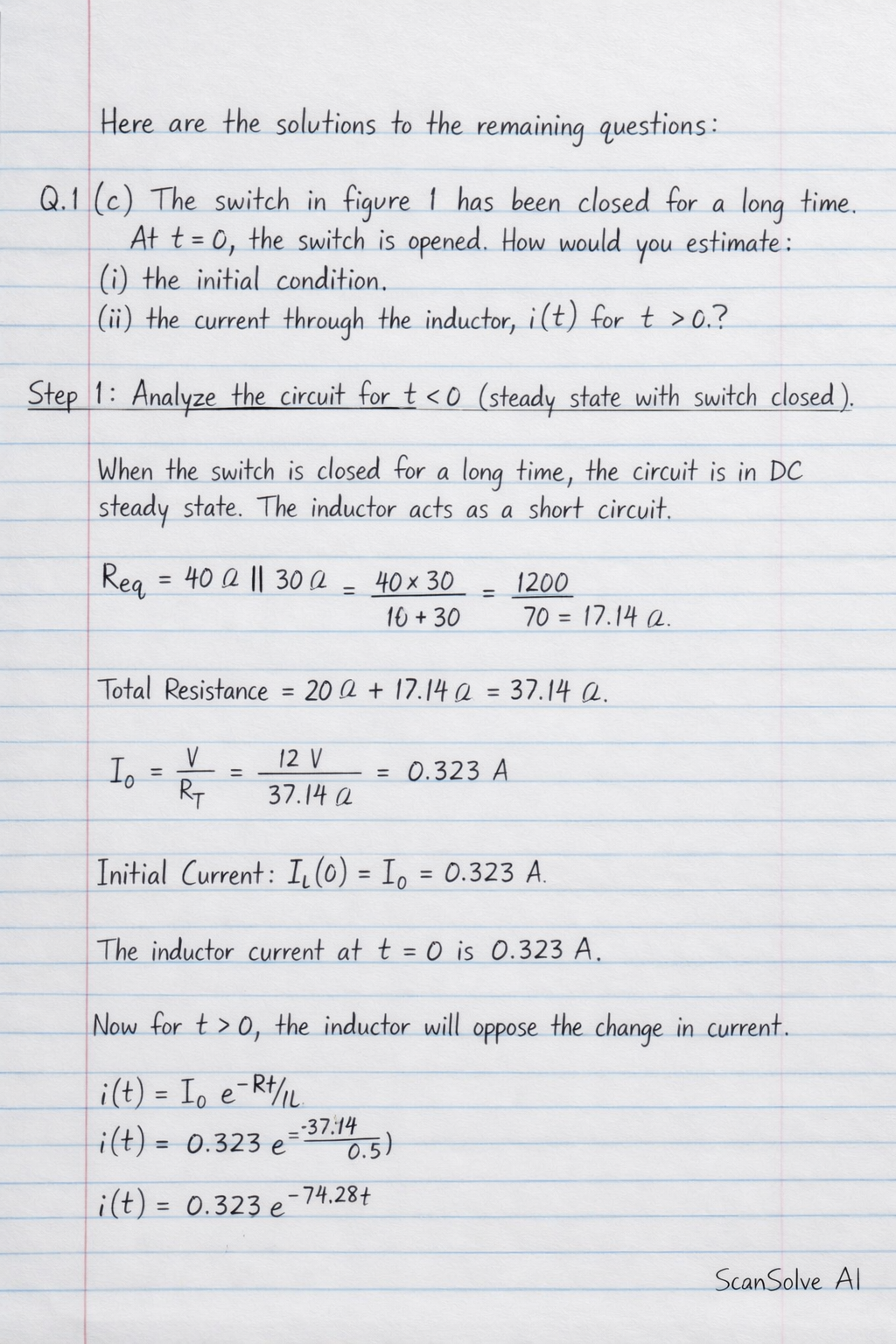

Here are the solutions to the remaining questions: Q.1 (c) The switch in figure 1 has been closed for a long time. At t=0, the switch is opened. How would you estimate: (i) the initial condition (ii) the current through the inductor, i(t) for t > 0 ? Step 1: Analyze the circuit for t < 0 (steady state with switch closed). When the switch is closed for a long time, the circuit is in DC steady state. The inductor acts as a short circuit. The 20 Ohm resistor is in series with the parallel combination of the 40 Ohm resistor and the 30 Ohm resistor. The inductor is in series with the
