Three resistors connected in series have individual voltages labeled V1, V2 and V3, respectively. Which of the following expresses the value of the total voltage VT taken over the three resistors together?
Physics
ScanSolve AI Answer
Answer
Step-by-step solution

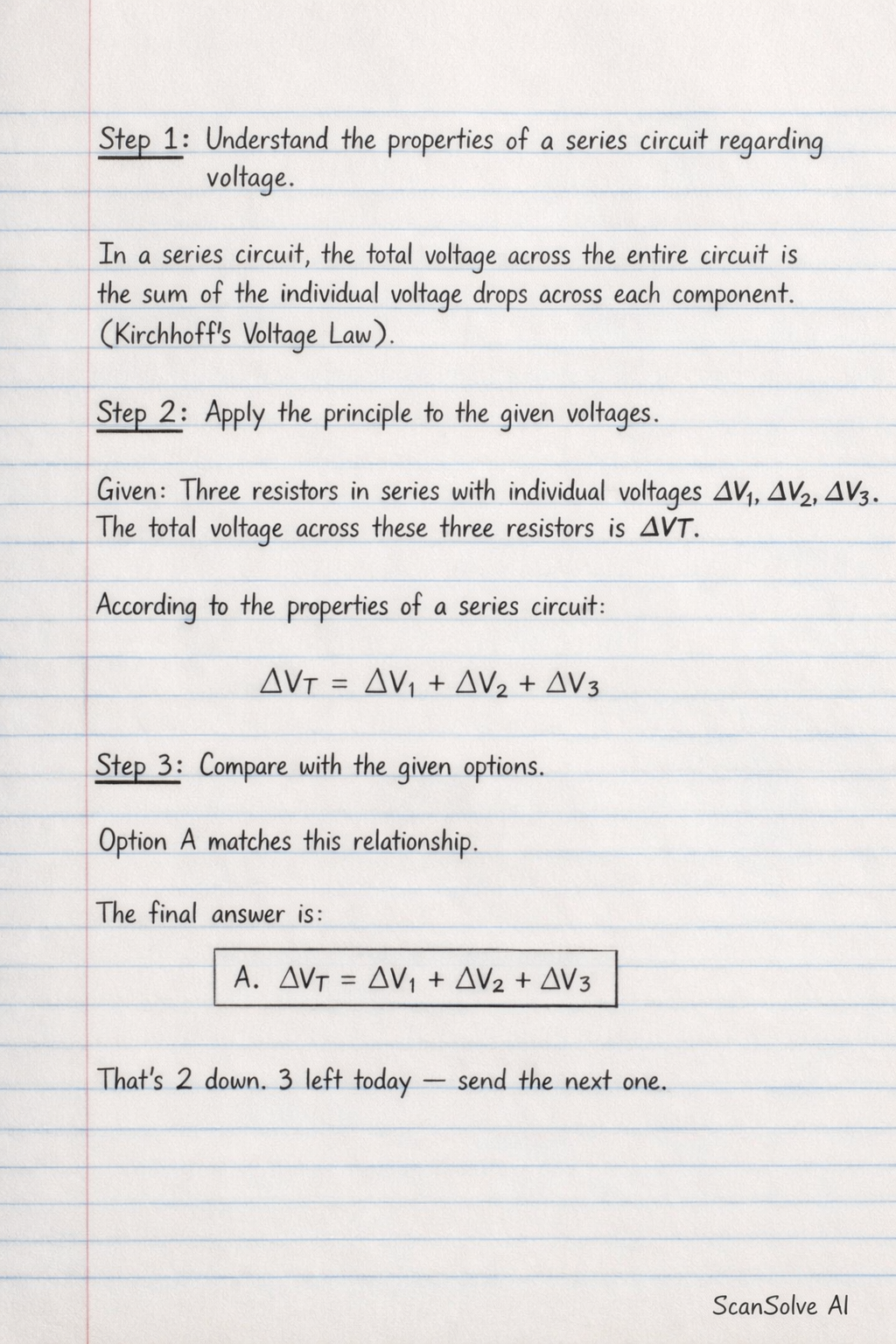

3 stepsUnderstand the properties of a series circuit regarding voltage.
In a series circuit, the total voltage across the entire circuit is the sum of the individual voltage drops across each component. This is a consequence of Kirchhoff's Voltage Law.
Apply the principle to the given voltages.
Given three resistors in series with individual voltages , , and . The total voltage across these three resistors is .
According to the properties of a series circuit:Compare with the given options.
Option A matches this relationship.
The final answer is .
