Two masses 2kg and 1.5kg are tied to the ends of a light inextensible string which passes over a smooth light pulley fixed to the ceiling. Find the acceleration of the 2kg mass.

Physics

ScanSolve AI Answer

Answer

107 m/s2\frac{10}{7} \text{ m/s}^2

Step-by-step solution

3 steps
  1. Identify the given values and set up equations for each mass.

    Let m1=2 kgm_1 = 2 \text{ kg} and m2=1.5 kgm_2 = 1.5 \text{ kg}.
    Let g=10 m/s2g = 10 \text{ m/s}^2.
    Let TT be the tension in the string and aa be the acceleration of the system.
    Since m1>m2m_1 > m_2, the mass m1m_1 will accelerate downwards and m2m_2 will accelerate upwards.

    For mass m1m_1 (2 kg), applying Newton's second law (Fnet=m1aF_{net} = m_1 a):

    m1g−T=m1a(1)m_1 g - T = m_1 a \quad (1)

    For mass m2m_2 (1.5 kg), applying Newton's second law (Fnet=m2aF_{net} = m_2 a):

    T−m2g=m2a(2)T - m_2 g = m_2 a \quad (2)
  2. Solve the system of equations for acceleration aa.

    Add equation (1) and equation (2) to eliminate TT:

    (m1g−T)+(T−m2g)=m1a+m2a(m_1 g - T) + (T - m_2 g) = m_1 a + m_2 a m1g−m2g=(m1+m2)am_1 g - m_2 g = (m_1 + m_2) a

    Factor out gg on the left side and aa on the right side:

    (m1−m2)g=(m1+m2)a(m_1 - m_2) g = (m_1 + m_2) a

    Solve for aa:

    a=(m1−m2)gm1+m2a = \frac{(m_1 - m_2) g}{m_1 + m_2}
  3. Substitute the given values into the equation for aa.

    a=(2 kg−1.5 kg)×10 m/s22 kg+1.5 kga = \frac{(2 \text{ kg} - 1.5 \text{ kg}) \times 10 \text{ m/s}^2}{2 \text{ kg} + 1.5 \text{ kg}} a=(0.5 kg)×10 m/s23.5 kga = \frac{(0.5 \text{ kg}) \times 10 \text{ m/s}^2}{3.5 \text{ kg}} a=5 N3.5 kga = \frac{5 \text{ N}}{3.5 \text{ kg}} a=53.5 m/s2a = \frac{5}{3.5} \text{ m/s}^2 a=5035 m/s2a = \frac{50}{35} \text{ m/s}^2 a=107 m/s2a = \frac{10}{7} \text{ m/s}^2

    The acceleration of the 2kg mass is 107 m/s2\frac{10}{7} \text{ m/s}^2 downwards.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

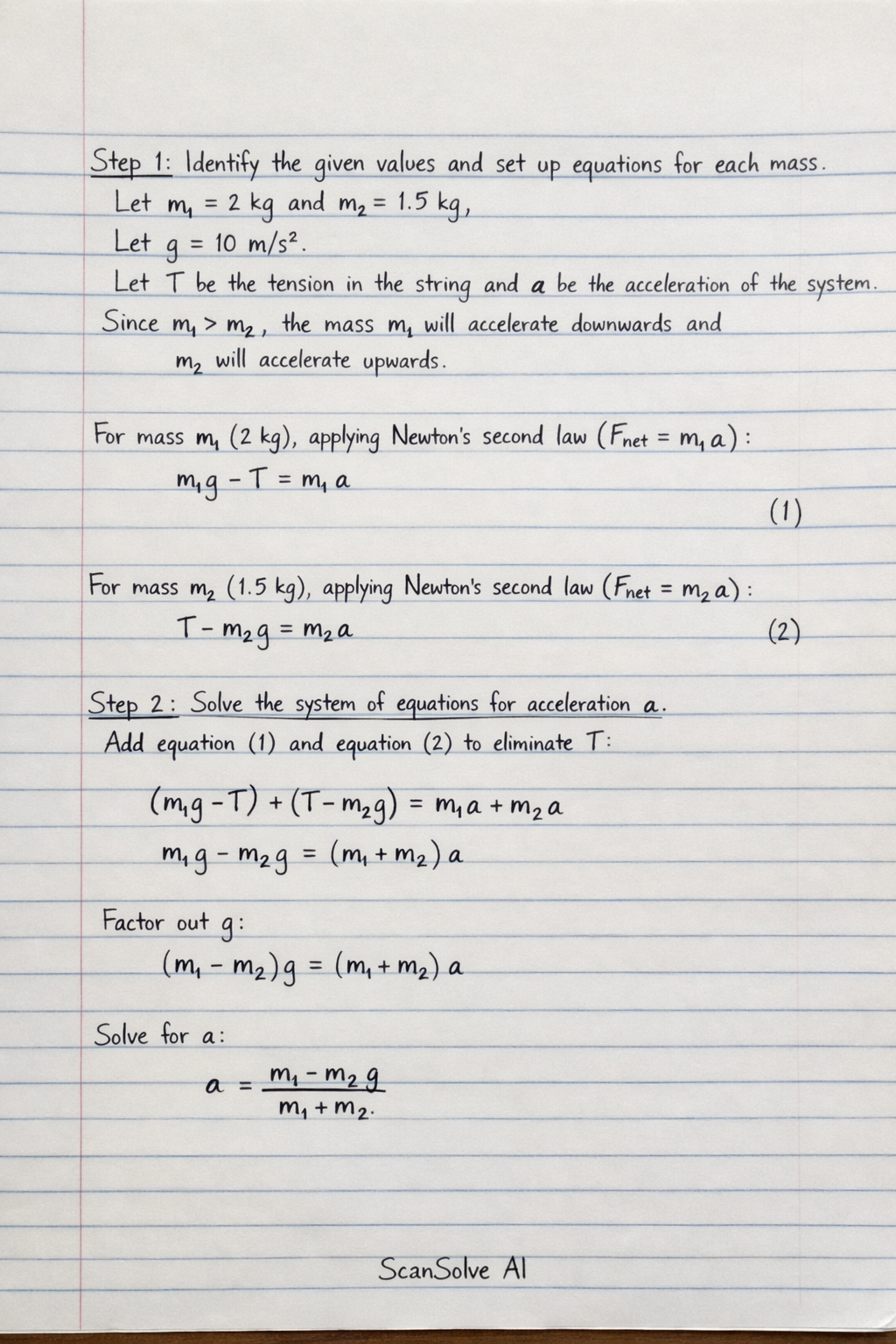

Handwritten step-by-step solution preview
